Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Disconnect the battery negative terminal.
Remove the air cleaner.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the intercooler inlet pipe & hose assembly.
(Refer to Intake and Exhaust System - "INTERCOOLER ")

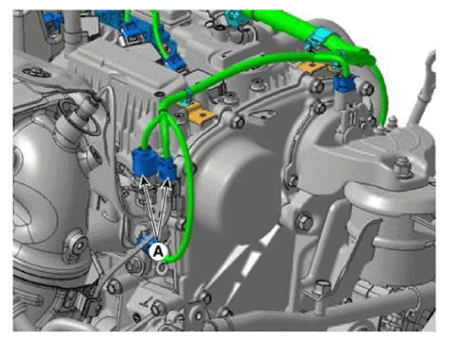

Disconnect the oxygen sensor connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

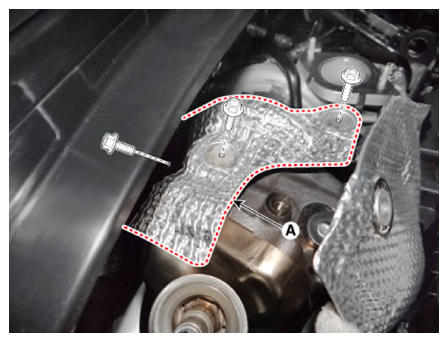

Remove the exhaust upper heat protector bolt (A).
Tightening Torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Check that engine is cool enough to work.

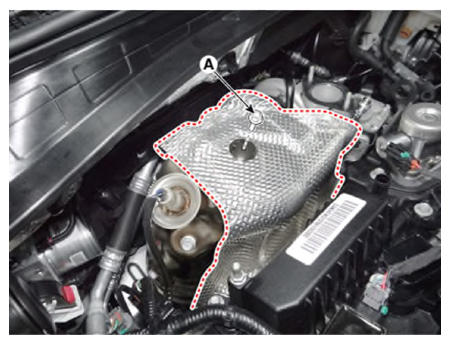

Remove the turbocharger heat protector (A).
Tightening Torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Intake & Exhaust System-Turbocharger & Exhaust Manifold - REPAIR PROCEDURES
Remove the heated oxygen sensor from the warm-up catalytic converter (WCC).
(Refer to Engine Control/Fuel System - "HEATED OXYGEN SENSOR (HO2S) ")

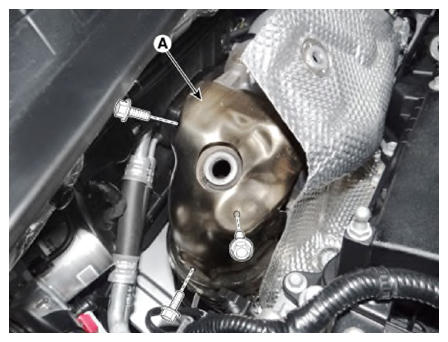

Remove the warm-up catalytic converter (WCC) heat protector (A).
Tightening Torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front muffler.
(Refer to Intake and Exhaust System - "MUFFLER ")

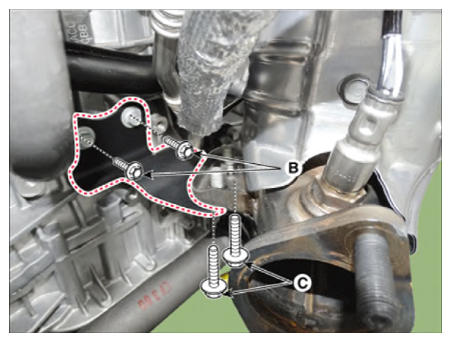

Remove the warm-up catalytic converter (WCC) bracket (A).
Tightening Torque:

Bolts (B):

18.6 - 27.5 N.m (1.9 - 2.8 kgf.m, 13.7 - 20.3 lb.ft)

Bolts (C):

52.0 - 57.9 N.m (5.3 - 5.9 kgf.m, 38.3 - 42.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

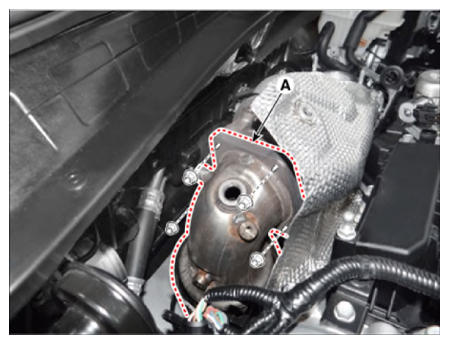

Remove the warm-up catalytic converter (WCC) (A) and gasket.
Tightening Torque:

49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

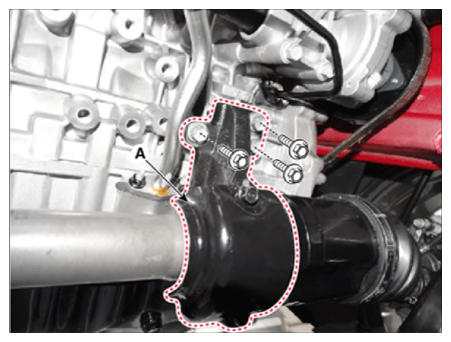

Remove the driveshaft mounting bracket (A).
Tightening Torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

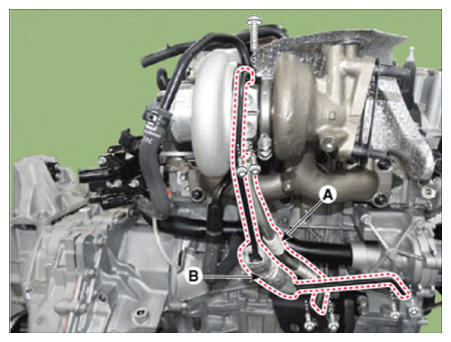

Disconnect the oil drain pipe (A), and then remove the oil feed pipe (B).
Tightening Torque

Bolts & Nuts:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Eye bolt:

11.8 - 17.6 N.m (1.2 - 1.8 kgf.m, 8.7 - 13.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

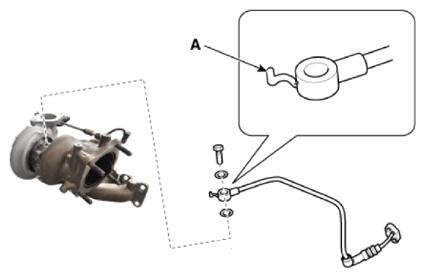

NOTE:
- When installing the oil feed pipe & hose, make sure the stopper (A) don't touch the compressor housing.
- Be careful not to bend or crush the pipe & hose.
- When installing, be sure the eye bolt o-rings are completely seated in both hole of oil feed pipe.
- When installing, clean the gasket surface and replace the oil drain pipe gasket with new one.
Courtesy of KIA MOTORS AMERICA, INC.

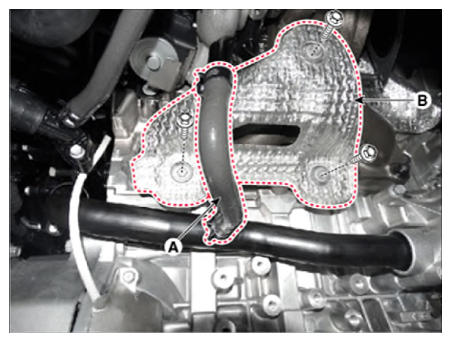

Remove the turbocharger water drain hose (A), and then remove the lower heat protector (B).
Tightening Torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

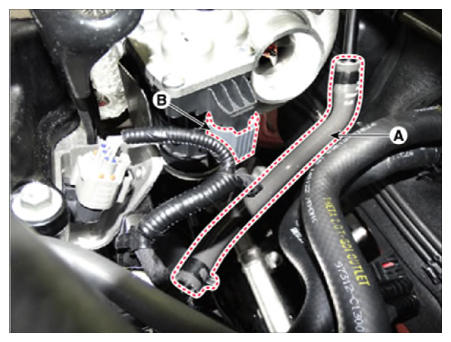

Disconnect the turbocharger water feed hose (A) and the electric waste gate actuator (EWGA) connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

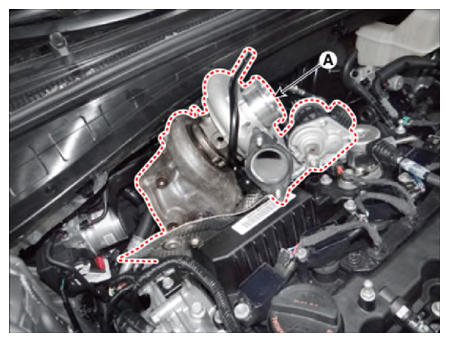

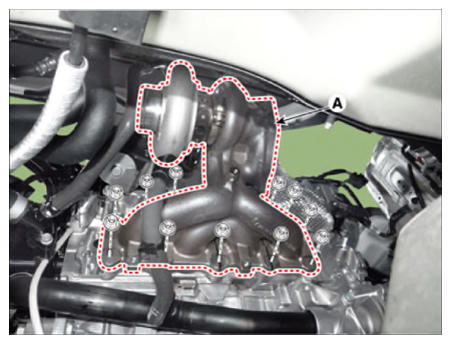

Remove the turbo manifold module.
Tightening Torque:

49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When installing, replace with a new gasket. When installing the turbo manifold module, tighten the nuts with pre-torque first, and then tighten the nuts with specified torque in the sequence shown.

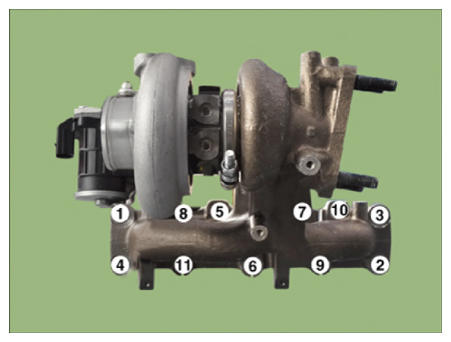

Fig 1: Exhaust Manifold Nuts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

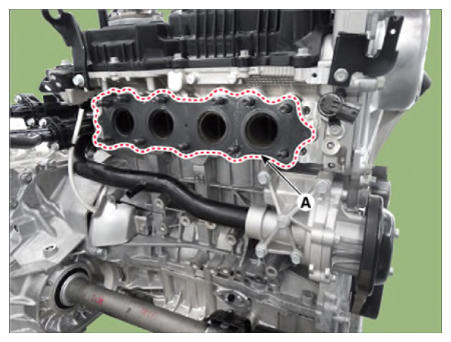

Remove the turbo charger manifold gasket (A).

Courtesy of KIA MOTORS AMERICA, INC.

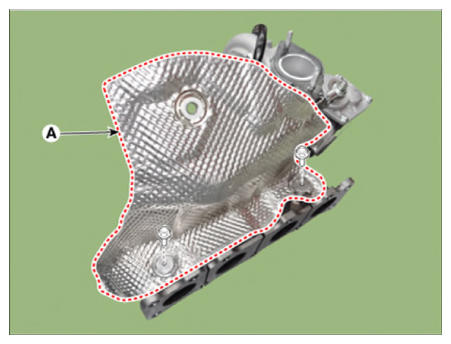

Remove the exhaust upper heat protector (A).
Tightening Torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

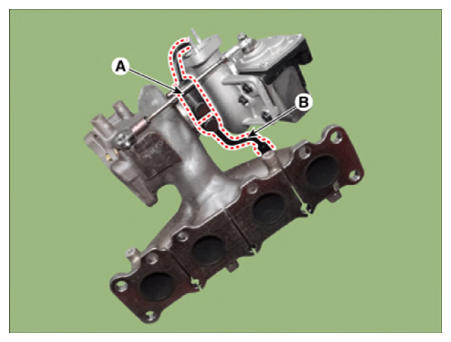

Remove the water feed pipe (A) and drain pipe (B).
Tightening Torque:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Always use the new turbo manifold module and turbo adapter gaskets when replacing.
- Take care whether the oil feed pipe & hose assembly is interfered with turbo manifold module and any surrounding parts.
- If the oil feed pipe & hose is damaged, engine oil is not supplied sufficiently to the turbocharger then it may damage the turbocharger. If the oil drain pipe & hose is damaged and clogged, engine oil is not drained smoothly then it may cause oil leaks from the turbocharger. Be careful the oil feed pipe & hose not to damage. (bent, crushed, torn or cracked).
