Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

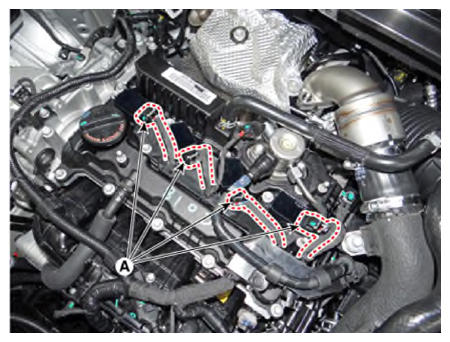

  3. Disconnect the ignition coil connector (A).
    G12922146Courtesy of KIA MOTORS AMERICA, INC.

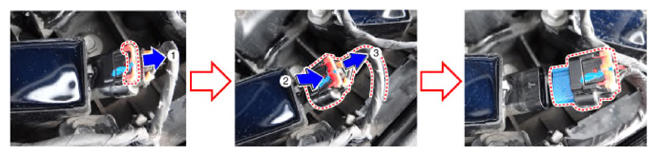

    NOTE: Disconnect the ignition coil connector as the procedures below.
    G12922147Courtesy of KIA MOTORS AMERICA, INC.

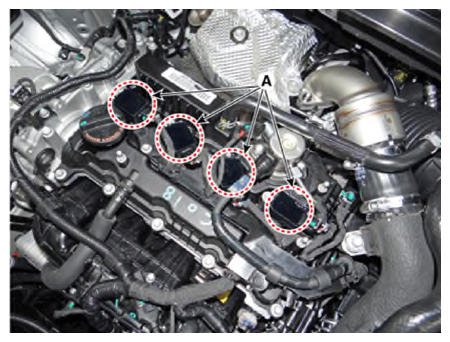

  4. Remove the ignition coil (A) after loosening the mounting bolt.
G12922148Courtesy of KIA MOTORS AMERICA, INC.
