Catalytic Converter & Center Muffler

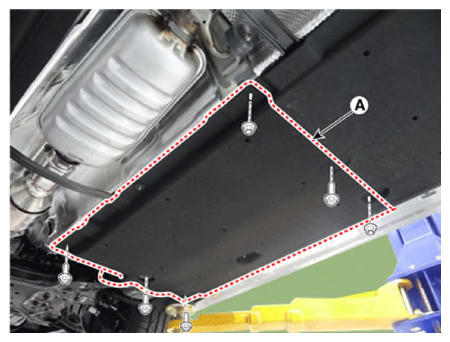

  1. Remove the RH floor under cover (A).
    G12915016Courtesy of KIA MOTORS AMERICA, INC.

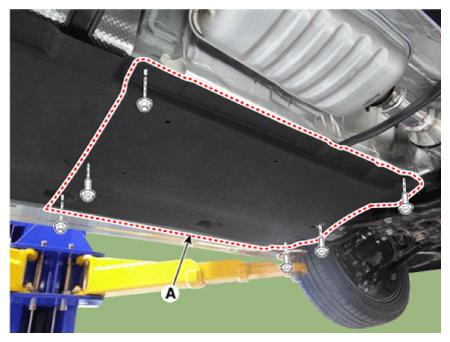

  2. Remove the LH floor under cover (A).
    G12915017Courtesy of KIA MOTORS AMERICA, INC.

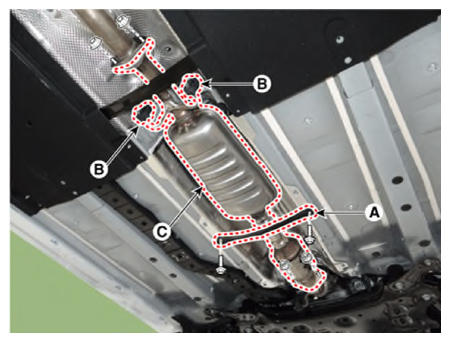

  3. Remove the bracket (A).
  4. Detach the rubber hanger (B) from the catalytic converter & center muffler.
  5. Remove the catalytic converter & center muffler (C).
    G12915018Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
