Repair procedures: Inspection

  1. Remove the left luggage side trim.

    (Refer to "TRUNK TRIM ")

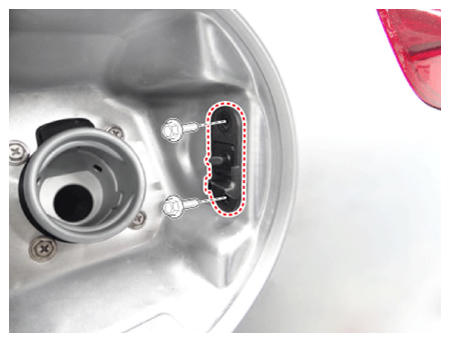

  2. Loosen two fuel filler actuator mounting bolts.
    G12920836Courtesy of KIA MOTORS AMERICA, INC.

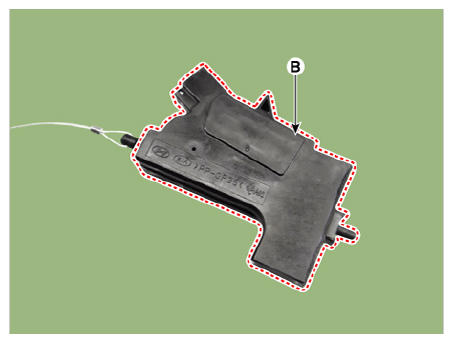

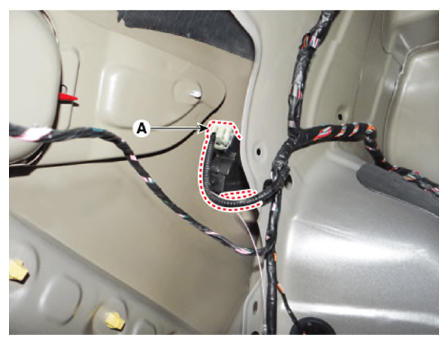

  3. Remove the fuel filler door release actuator (B) after disconnecting the fuel filler door release actuator connector (A).
    G12920837Courtesy of KIA MOTORS AMERICA, INC.
    G12920838Courtesy of KIA MOTORS AMERICA, INC.

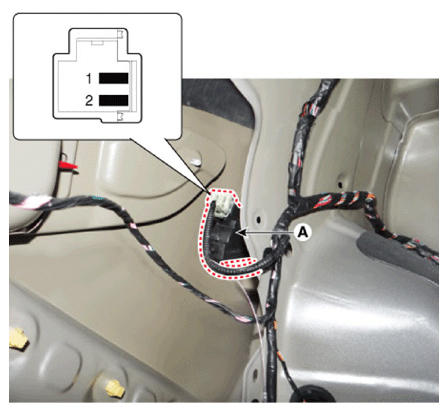

  4. Check for continuity between terminals No. 1 and No. 2. If there is no continuity, replace the fuel filler door release actuator (A).
    G12920839Courtesy of KIA MOTORS AMERICA, INC.
