Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

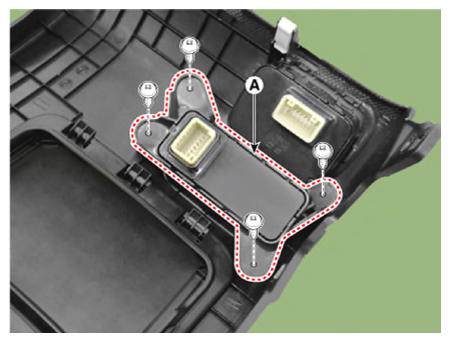

  3. Remove the fuel filler door open switch (A) after loosening the mounting screws.
    G12920841Courtesy of KIA MOTORS AMERICA, INC.
