Repair Procedures: Inspection

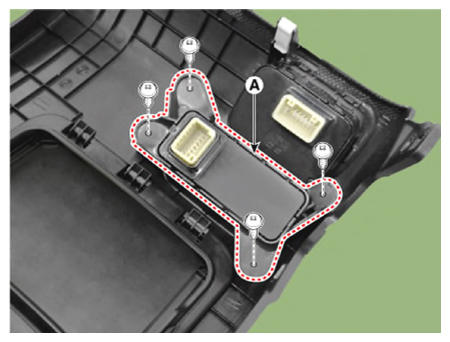

Remove the fuel filler door open switch (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
Apply battery voltage to each of terminals No. 1 (+) and No. 6 (-) as shown in the table.
In case of abnormal operation, replace the switch assembly.

Courtesy of KIA MOTORS AMERICA, INC.
