Steering Column Shroud Upper Panel

Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

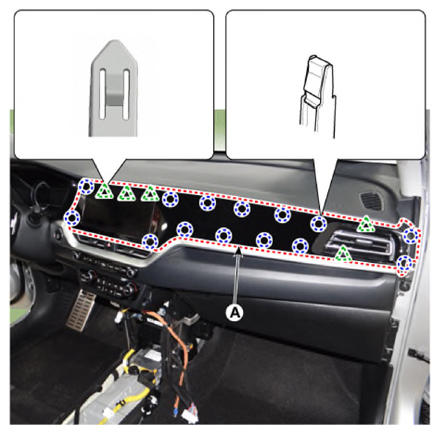

Using a screwdriver or remover, remove the center fascia panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

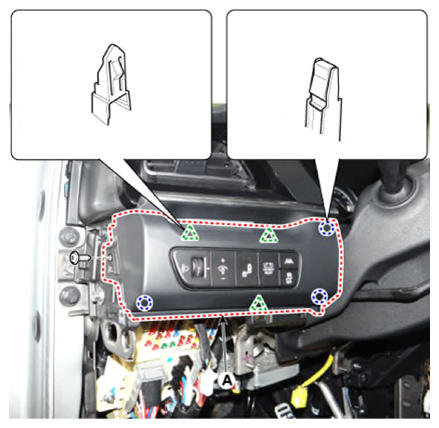

Loosen the mounting screws, remove the crash pad garnish assembly [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

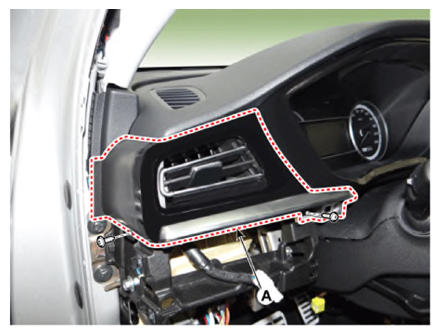

Loosen the mounting screws, remove the side air vent duct [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

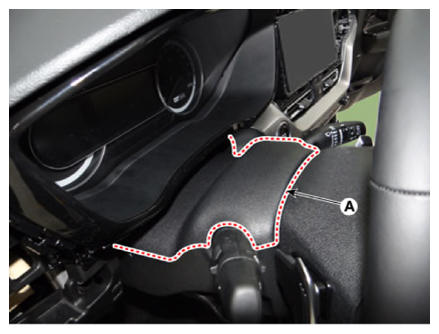

Using a screwdriver or remover, remove the steering column shroud upper panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

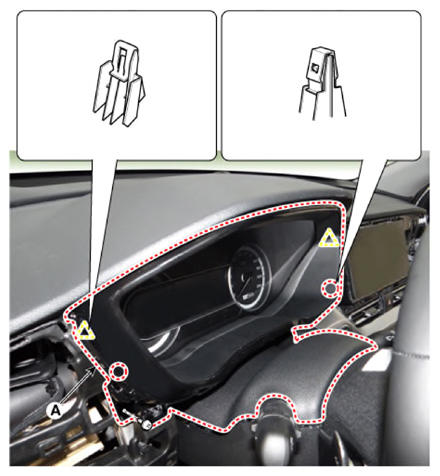

Loosen the mounting screws, remove the cluster fascia panel (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
