Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

1. Remove the front seat.

   (Rear to Front Seat - "FRONT SEAT ASSEMBLY ")

2. Remove the front pillar trims on both sides.

   (Refer to Body - "FRONT PILLAR TRIM ")

3. Remove the center fascia panel.

   (Refer to Crash Pad - "CRASH PAD CENTER PANEL ")

4. Remove the steering wheel.

   (Refer to Steering System - "STEERING WHEEL ")

5. Remove the instrument cluster.

   (Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

6. Remove the multifunction switch assembly.

   (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

7. Remove the steering column shroud lower panel.

   (Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")

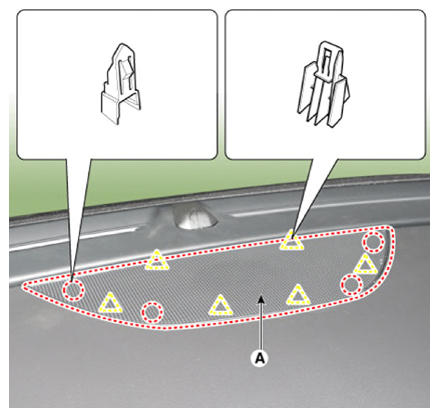

8. Remove the center speaker grille (A) by using a remover.

   Courtesy of KIA MOTORS AMERICA, INC.

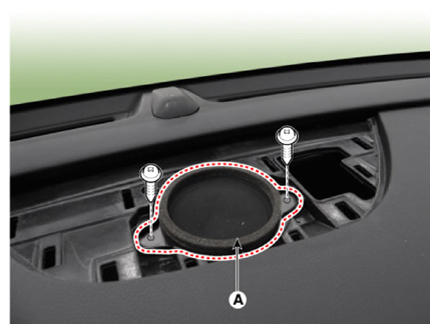

9. Separate the center speaker (A) after loosening the screws.

   Courtesy of KIA MOTORS AMERICA, INC.

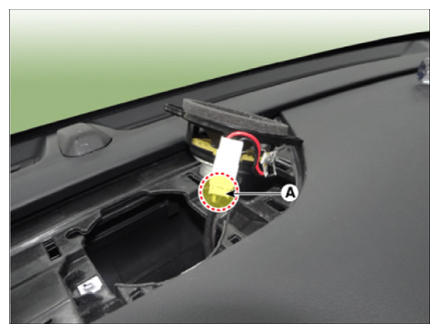

10. Remove the center speaker (B), after disconnecting the connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

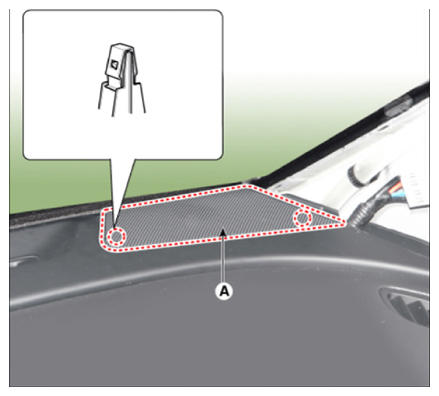

11. Remove the mid-range speaker grilles (A) on both sides by using a remover.

    Courtesy of KIA MOTORS AMERICA, INC.

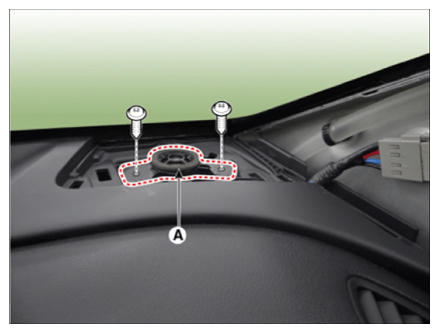

12. Separate the mid-range speakers (A) on both sides after loosening the mounting bolts.

    Courtesy of KIA MOTORS AMERICA, INC.

13. Remove the mid-range speakers (B) on both sides after disconnecting the connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

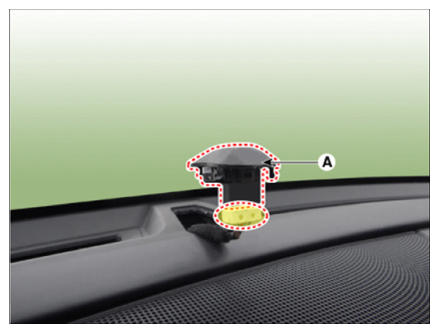

14. Separate the photo sensor (A) by using a remover.

    Courtesy of KIA MOTORS AMERICA, INC.

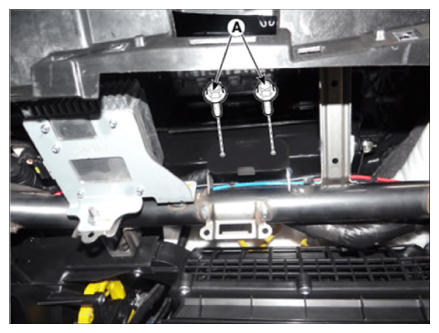

15. Loosen the passenger airbag mounting bolts (A).

    Courtesy of KIA MOTORS AMERICA, INC.

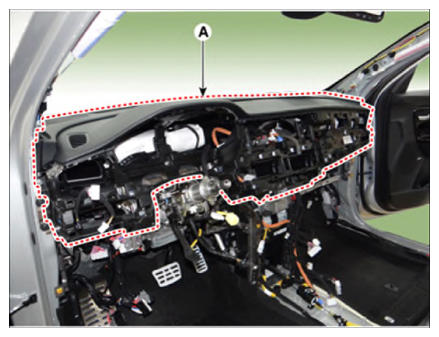

16. Separate the main crash pad assembly (A) after loosening the mounting bolts and nuts.

    [LH]

    Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    Courtesy of KIA MOTORS AMERICA, INC.

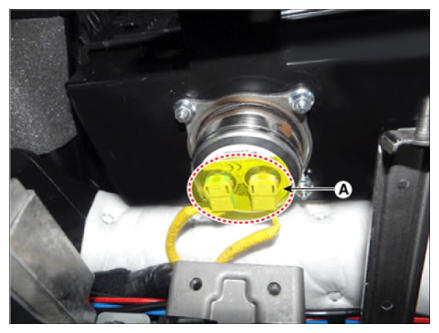

17. Disconnect the passenger airbag connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

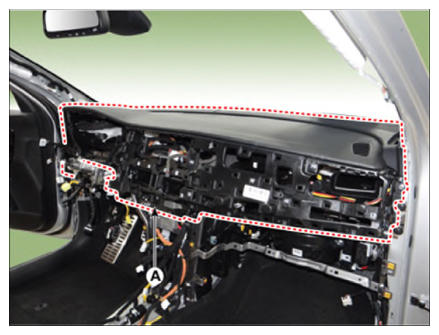

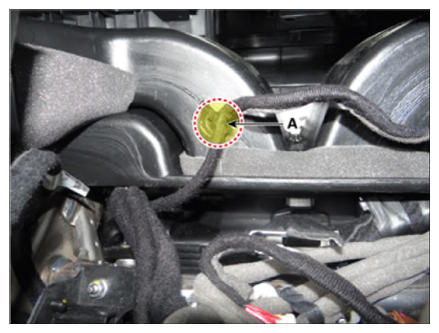

18. Remove the crash pad assembly after disconnecting the wiring clip (A).

    Courtesy of KIA MOTORS AMERICA, INC.

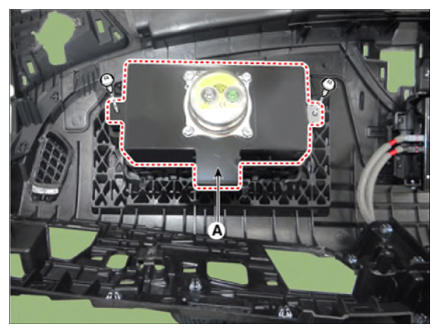

19. Remove the passenger airbag (A) after loosening the bolts.

    Courtesy of KIA MOTORS AMERICA, INC.

20. Install in the reverse order of removal.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
