Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the crash pad side cover (A) by using a remover.

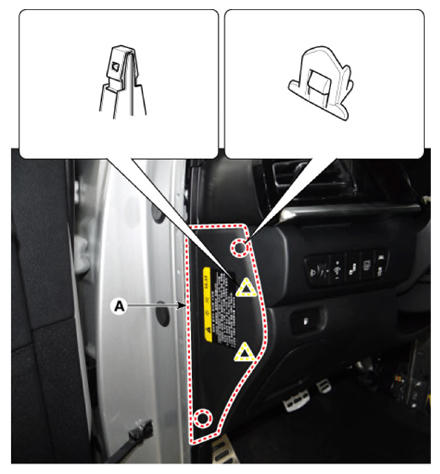

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

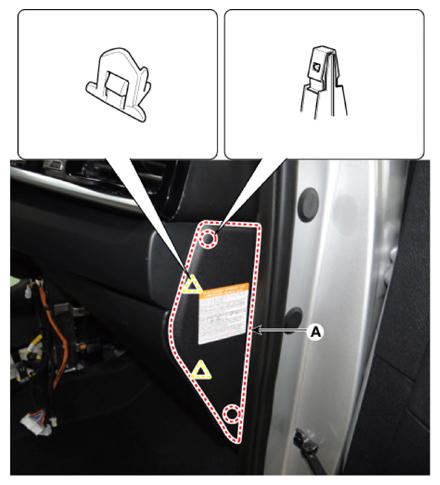

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips.
