Crash Pad Garnish RH

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

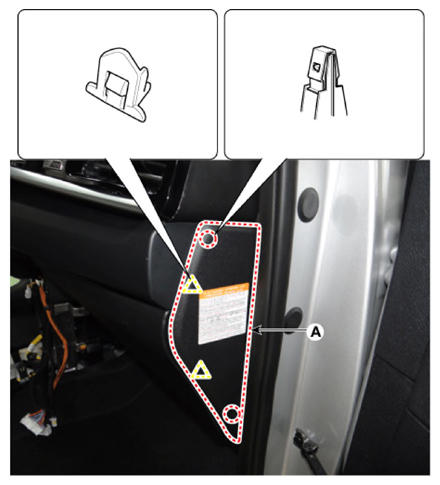

1. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

   Courtesy of KIA MOTORS AMERICA, INC.

2. Loosen the mounting screw, remove the crash pad plate (A).

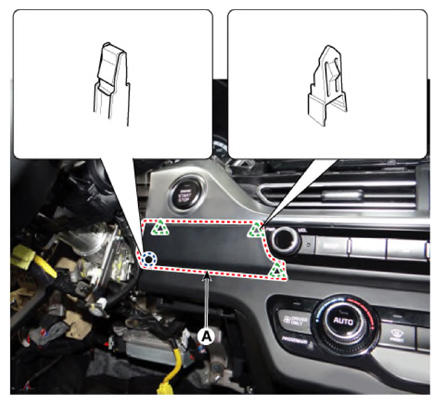

   [LH]

   Courtesy of KIA MOTORS AMERICA, INC.

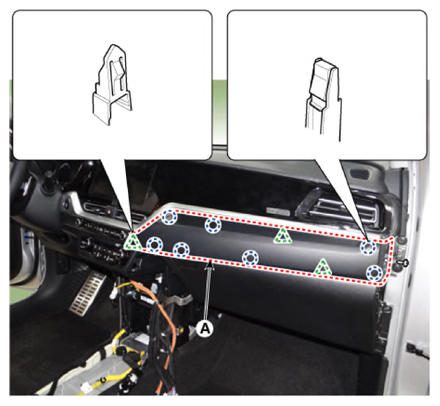

   [RH]

   Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the cluster fascia panel.

   (Refer to Crash Pad - "CLUSTER FASCIA PANEL ")

4. Remove the audio and AVN head unit.

   (Refer to Body Electrical System - "AUDIO UNIT ")

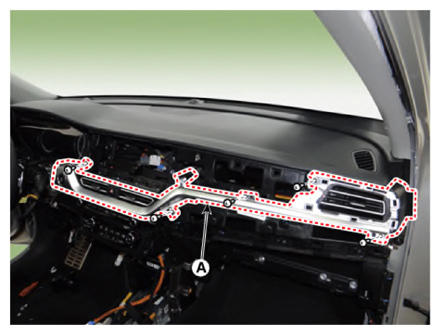

5. Loosen the mounting screws, remove the crash pad garnish [RH] (A).

   Courtesy of KIA MOTORS AMERICA, INC.

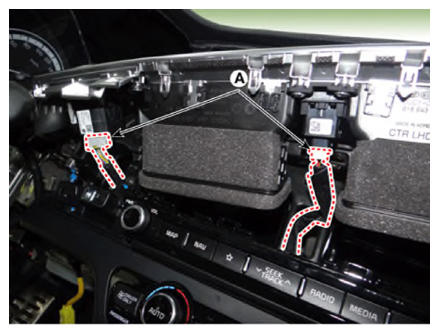

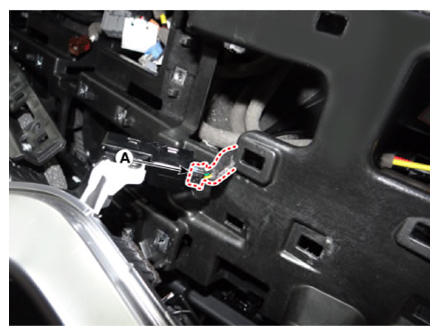

6. Disconnect the connectors (A)

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

7. To install, reverse the removal procedure.

   Information

   • Replace any damaged clips (or pin-type retainers).
   • Make sure the connector are connected in properly.
