Center Fascia Lower Panel

  1. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

  2. Remove the crash pad garnish.

    (Refer to Crash Pad - "CRASH PAD GARNISH ")

  3. Remove the console front tray.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  4. Remove the AVN keyboard.

    (Refer to Body Electrical System - "AUDIO-AVN KEYBOARD ")

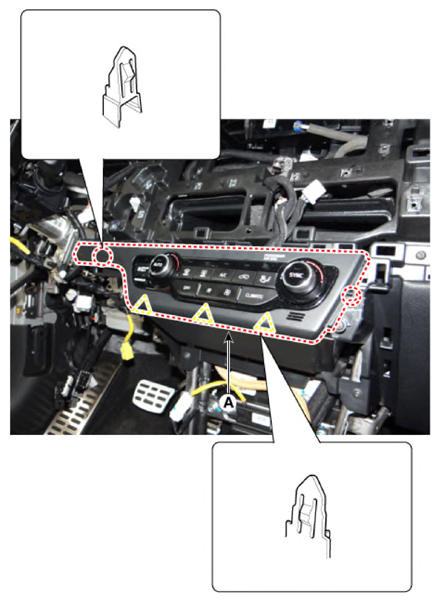

  5. Using a screwdriver or remover, remove the center fascia lower panel (A).
    G13350315Courtesy of KIA MOTORS AMERICA, INC.
  6. To install, reverse the removal procedure.

    Information

    • Replace any damaged clips (or pin-type retainers).
    • Make sure the connector are connected in properly.
