Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

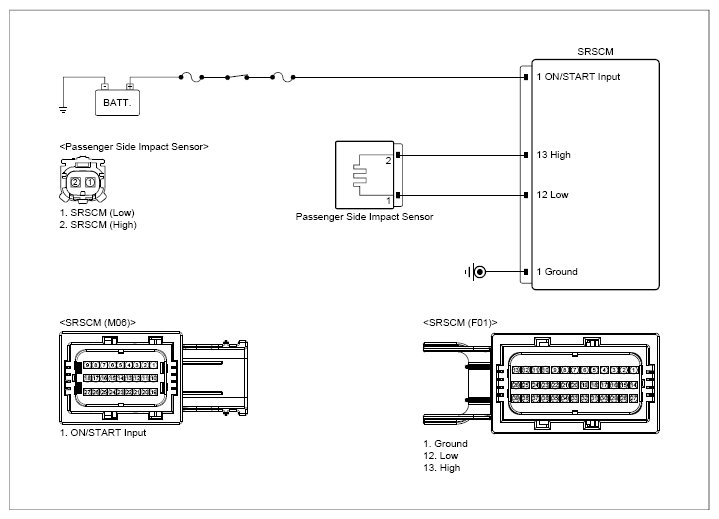

Ignition "OFF". Disconnect the battery (-) terminal cable from the battery, and wait at least one minute. Disconnect PSIS connector and SRSCM main connector.	PSIS connector	2 (high)	Chassis ground	-	∞ (infinity)Ω
	PSIS connector	1 (low)	Chassis ground	-	∞ (infinity)Ω

Good

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM main harness and then go to "VERIFICATION OF REPAIR " procedure.
