Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD ")

  3. Remove the knee air bag.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

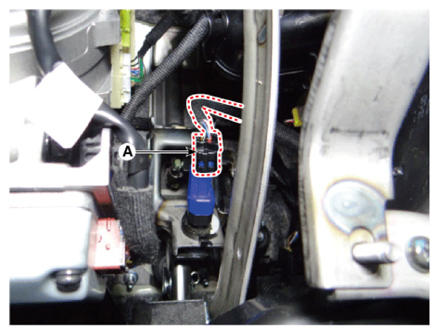

  4. Disconnect the stop lam switch connector (A).
    G13437755Courtesy of KIA MOTORS AMERICA, INC.

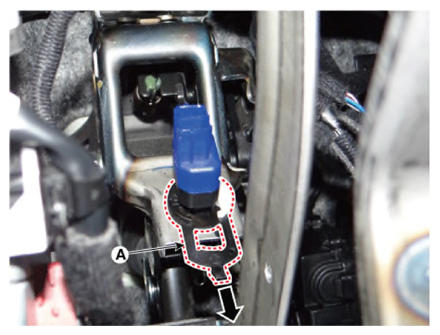

  5. Pull the locking plate (A) as indicated by the arrow.
    G13437756Courtesy of KIA MOTORS AMERICA, INC.

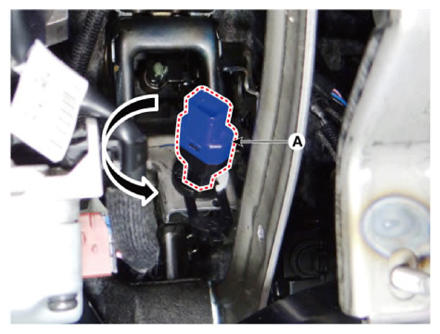

  6. Turn brake switch 45° counterclockwise and remove it.
    G13437757Courtesy of KIA MOTORS AMERICA, INC.
  7. Inspect a removed stop lamp switch along the below procedures.

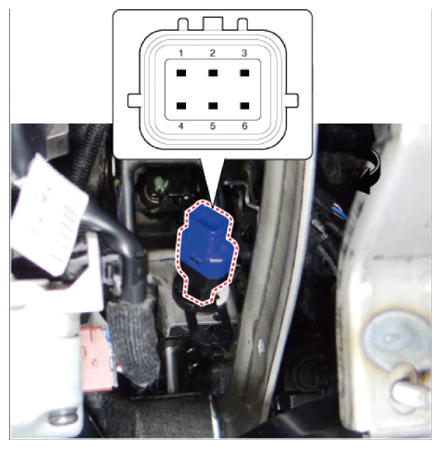

    1. Confirm a normal connection with terminal part
      • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
