Repair Procedures: Installation

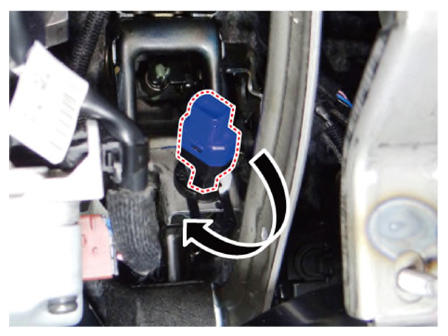

Insert fully the stop lamp switch as hiding contact part and than turn the stop lamp switch 45° clockwise.

Courtesy of KIA MOTORS AMERICA, INC.

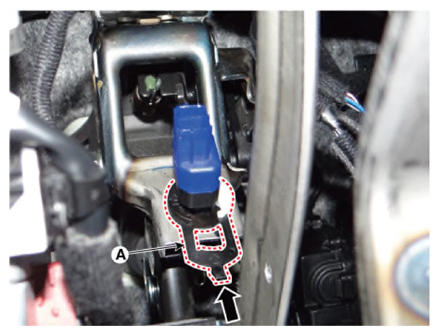

Assemble locking plate (A) by pushing.

Courtesy of KIA MOTORS AMERICA, INC.

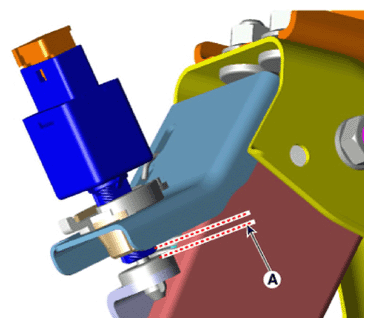

Confirm the gap (A) between stop lamp switch and bracket.
Stop lamp clearance:

1.0 - 2.0 mm (0.04 - 0.08 in.)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If the gap between stop lamp switch and bracket is not 1.0 - 2.0 mm (0.04 - 0.08in), perform the above process again.

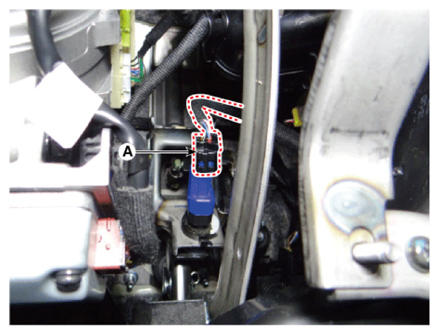

Connect the stop lamp switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the knee air bag.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")
Install the lower crash pad.
(Refer to Body - "CRASH PAD ")
