KDS Data Analysis

  1. Analyze KDS data and confirm if there is anything wrong with the stop lamp switch.
    1. Connect the KDS to the self-diagnosis connector.
    2. Turn the spark switch on
    3. Step on the brake pedal.
    4. Inspect the "brake switch" category that displays the "sensor data" KDS.)

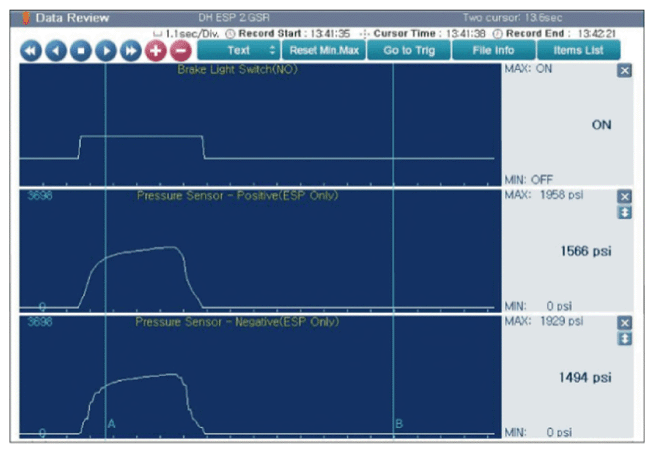

      Normal waveform  : The pressure sensor signal value will change according to the brake ON/OFF switch.

    G13437765Courtesy of KIA MOTORS AMERICA, INC.
