Inspect The Stop Lamp Circuit

Connect probe to each terminal wire and confirm oscilloscope waveform.

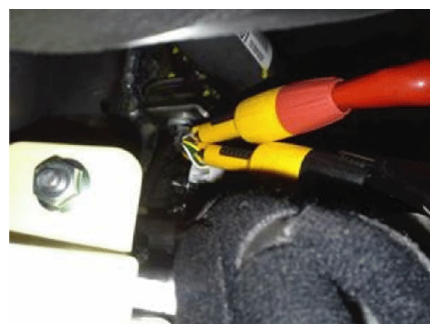

[Stop lamp switch input/output]

G13437768Courtesy of KIA MOTORS AMERICA, INC.

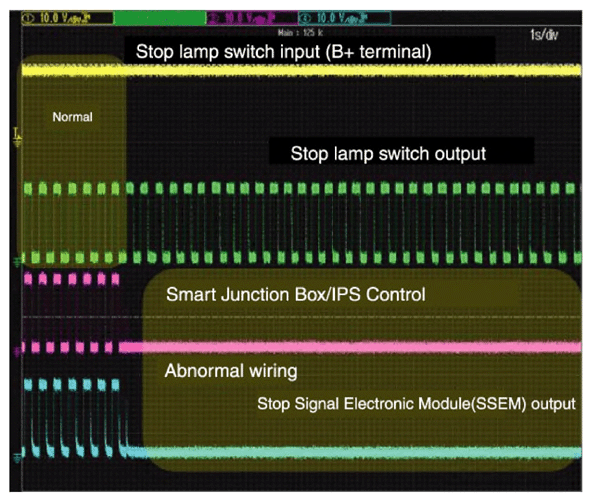

[Oscilloscope waveform screen]

G13437769Courtesy of KIA MOTORS AMERICA, INC.
