Without EPB

Release the parking brake lever and parking brake cable is loose.
Remove the rear wheel and tire.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

NOTE: Be careful not to damage to the hub bolts when removing the front wheel and tire.

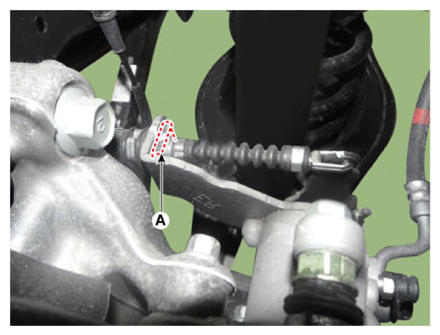

Remove the parking brake cable pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

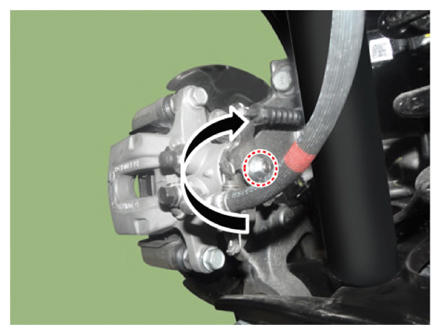

Rotates the nut in the clockwise direction and then remove the parking cable.

Courtesy of KIA MOTORS AMERICA, INC.

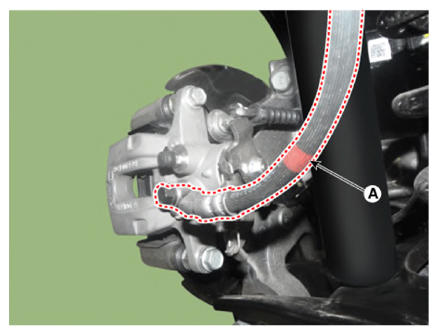

Disconnect the brake hose (A) from the brake caliper by loosening the bolt.

Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

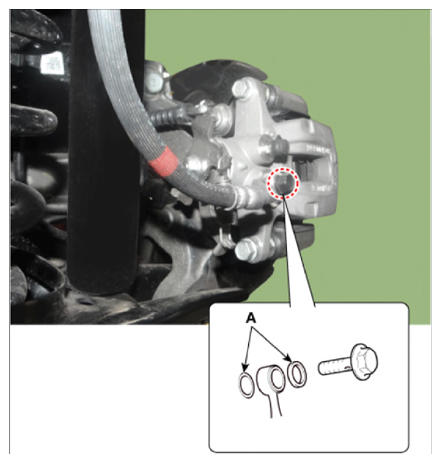

NOTE: Use a new washers (A) whenever installing.

Courtesy of KIA MOTORS AMERICA, INC.

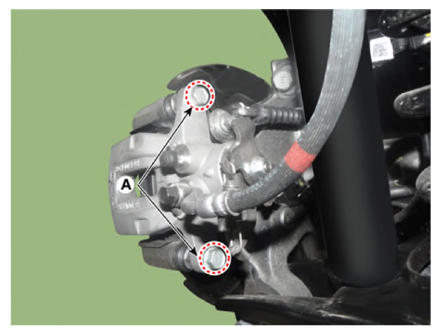

Loosen the guide rod bolts (A), and then remove the caliper body.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the pad return spring (A)

Courtesy of KIA MOTORS AMERICA, INC.

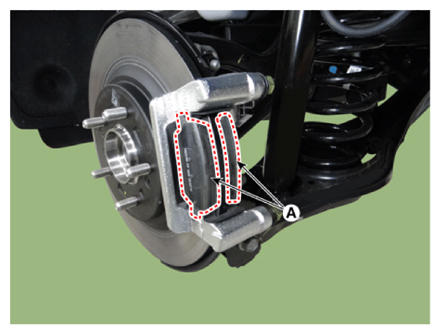

Remove the brake pads (A).

Courtesy of KIA MOTORS AMERICA, INC.

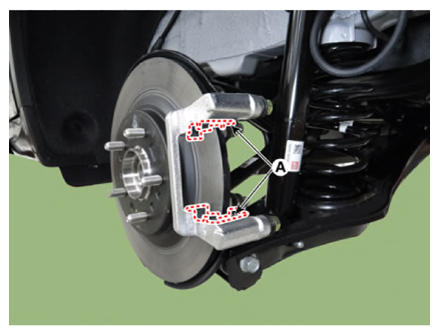

Remove the pad liner (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Place the return spring, pad liner, inner brake shim, and brake pad all at the same time when replacing the brake pad.

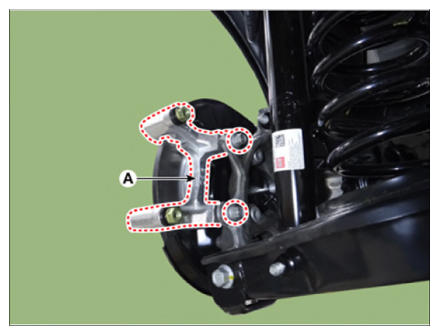

Remove the brake caliper carrier (A) by loosening the bolts.
Tightening torque:

EPB: 78.4 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.8 - 72.3 lb.ft)

Non-EPB: 63.5 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

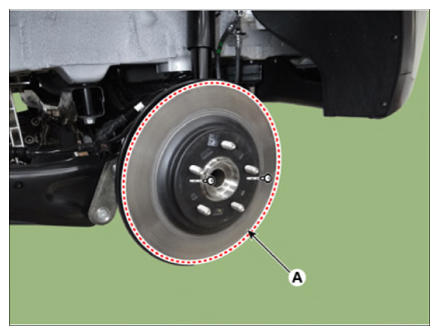

Loosen the screw and then remove the brake disk (A).
Tightening torque:

4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 Ib.ft)

Courtesy of KIA MOTORS AMERICA, INC.
