Repair Procedures: Installation

  1. Installation is the reverse of removal.
    NOTE: [With EPB]
    When installing, press and rotate the piston into the caliper body until it is fully retracted.
    [Without EPB]

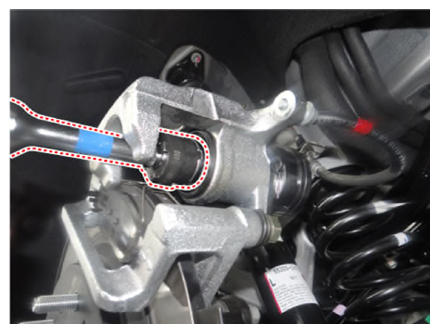

    • Rotate the caliper piston clockwise by using a SST (09580-0U000).
      G13437747Courtesy of KIA MOTORS AMERICA, INC.

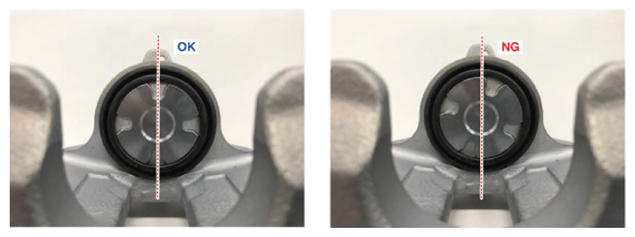

    • Check the groove position.
      G13437748Courtesy of KIA MOTORS AMERICA, INC.
  2. After filling the brake fluid in the reservoir, perform the air bleed.

    (Refer to the Brake system - "BRAKE BLEEDING PROCEDURES ")

    NOTE:
    • For the brake pad to locate on the normal operation position, depress the brake pedal halfway several times until the brake pedal gains resistance.
    • After disassembling/assembling the caliper body or replacing the brake caliper, parking brake cable or brake disc, re-adjust the parking brake.
