Repair Procedures: Removal

CAUTION: The following instructions describe how to diagnose faults using a diagnostic instrument.

Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
Select the "vehicle model" and "ESC/AHB" on KDS vehicle selection screen.

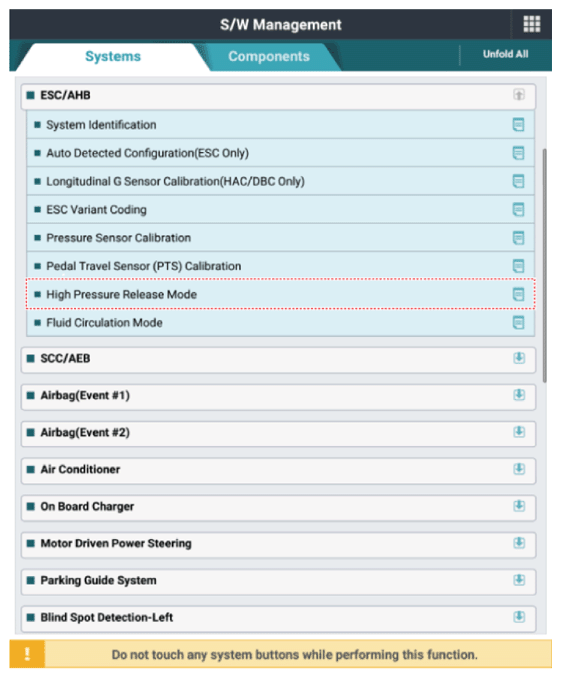

Select the "High Pressure Release Mode" on KDS screen, then select OK.

Proceed with the test according to the screen instructions.

Courtesy of KIA MOTORS AMERICA, INC.

Turn ignition switch OFF and disconnect the negative (-) battery terminal.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the brake fluid from the master cylinder reservoir with a syringe.
CAUTION: Do not spill brake fluid on the vehicle as it may damage the paint. If brake fluid comes in contact with the paint, wash off immediately with water.

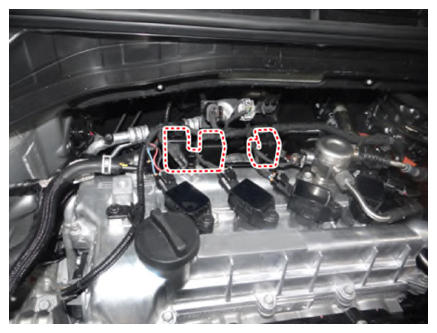

Remove the connector and wire ring bracket.

Courtesy of KIA MOTORS AMERICA, INC.

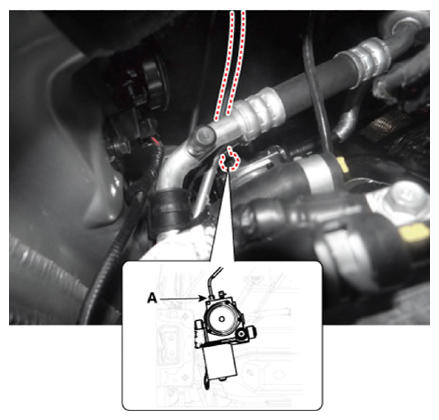

Loosen the pressure source unit (PSU) flare nut (A) and then remove the tube.
Tightening torque:

12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

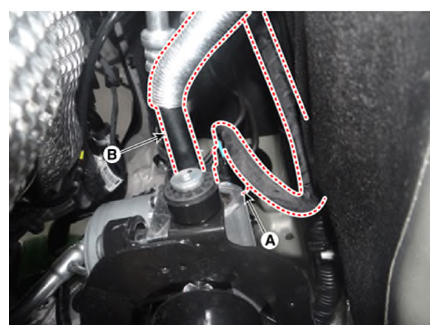

Disconnect the pressure source unit (PSU) connector (A) and hose (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the sub frame.
(Refer to Suspension system - "SUB FRAME ")

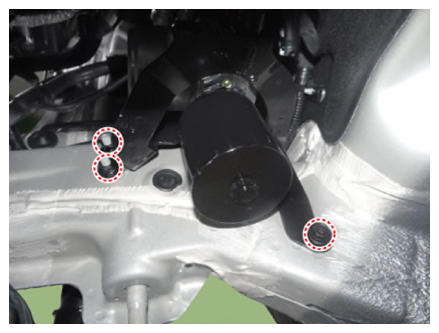

Loosen the nuts and bolt and then remove the pressure source (PSU).
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
