Diagnostic Procedure Using A Diagnostic Instrument: Notes

The following instructions describe how to diagnose faults using a diagnostic instrument.

1. Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2. Select the "vehicle model" and "ESC/AHB" on KDS vehicle selection screen.
3. Proceed with the test according to the screen instructions.

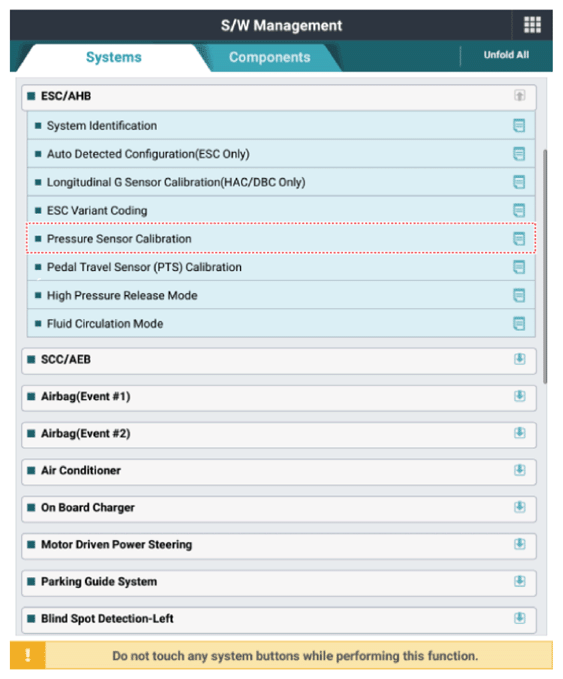

   Pressure Sensor Calibration

   Courtesy of KIA MOTORS AMERICA, INC.
