Home >> Kia >> 2020 >> Niro LX >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Active Hydraulic Boost (AHB) System (HEV) >> Brake Line >> Repair Procedures >> Installation

Repair Procedures: Installation

  1. Installation is the reverse of removal.
    NOTE: Use a new washers (A) whenever installing.

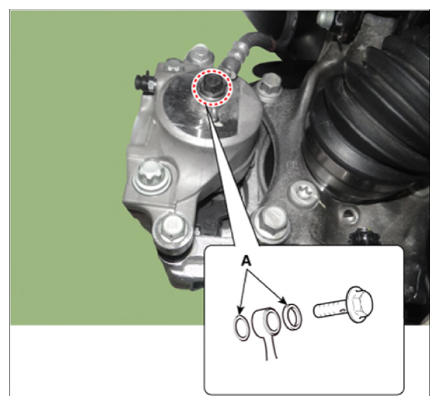

    G13437703Courtesy of KIA MOTORS AMERICA, INC.

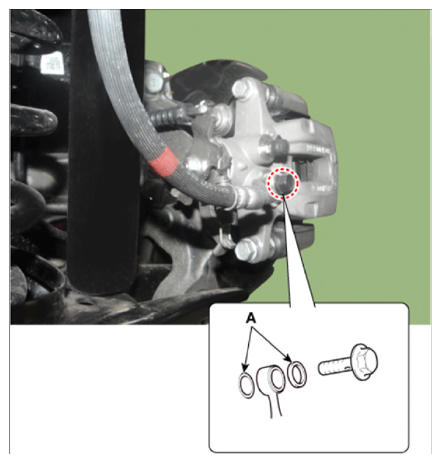

    G13437704Courtesy of KIA MOTORS AMERICA, INC.
  2. After filling the brake fluid in the reservoir, perform the air bleed.

    (Refer to the Brake system - "BRAKE BLEEDING PROCEDURES ")

  3. Check the spilled brake oil.
