Components & Components Location: Components

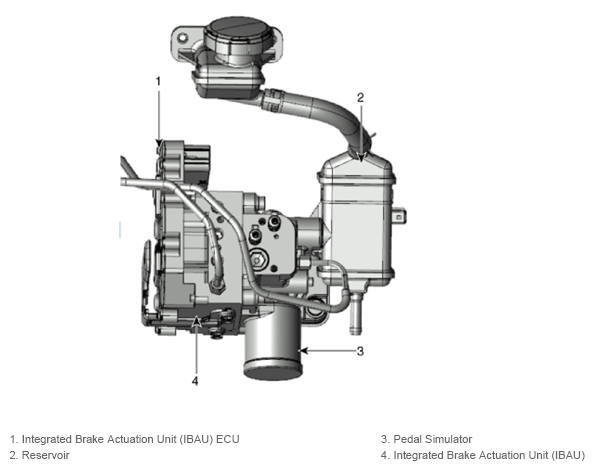

G13437678

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: IBAU (Integrated Brake Actuation Unit) must not be disassembled.
