Repair Procedures: Replacement
CAUTION:
Put on gloves to protect your hands.
Information
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Be careful not to bend or scratch the trim and panels.
- Remove the roof rack front cover and rear cover (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

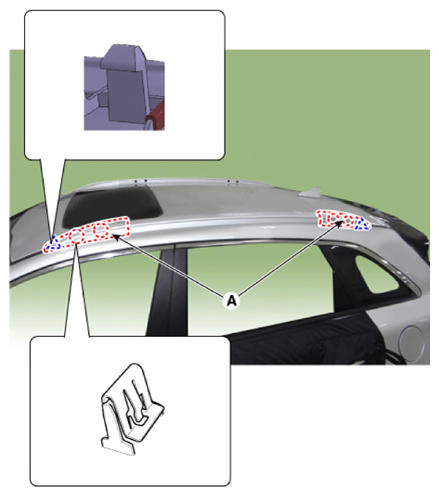

- Remove the roof rack cap (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

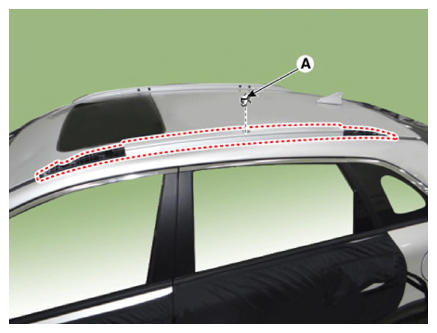

- Remove the roof rack assembly (A) after loosening the nuts.
Tightening torque:
3.9 - 4.4 N.m (0.4 - 0.45 kgf.m, 2.9 - 3.3 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
Information
Replace any damaged clips.
