Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

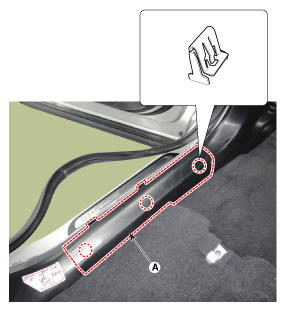

Using a screwdriver or remover, remove the front door scuff trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the screw and remove the hood latch release handle (A).

Courtesy of KIA MOTORS AMERICA, INC.

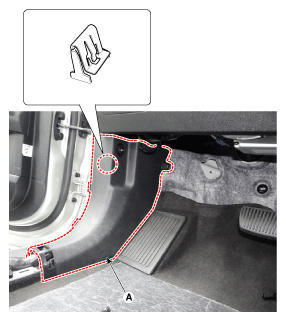

Using a screwdriver or remover, remove the cowl side trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

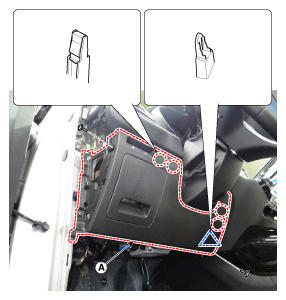

Loosen the mounting screws and remove the crash pad lower panel (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the crash pad lower switch connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips.
