Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the cowl top cover.

   (Refer to "COWL TOP COVER ")

2. Remove the main crash pad assembly.

   (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

3. Disconnect the steering column connectors.

   (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

4. Lower the steering column after loosening the mounting bolts.

   (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

5. Disconnect the photo sensor wiring fastener.
6. Loosen the bolt and then separate the rear air duct (A).

   [LH]

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

   Courtesy of KIA MOTORS AMERICA, INC.

7. Loosen the nuts and then separate the rear air duct (A).

   Courtesy of KIA MOTORS AMERICA, INC.

8. Disconnect the airbag control module (SRSCM) connector (A) and shift lever wiring connector (B).

   Courtesy of KIA MOTORS AMERICA, INC.

9. Disconnect the connector (A) and the mounting clips in the front pillar.

   [Driver"s]

   Courtesy of KIA MOTORS AMERICA, INC.

   [Passenger"s]

   Courtesy of KIA MOTORS AMERICA, INC.

10. Disconnect the LDC unit connector (A) and BCM unit connector (B).

    Courtesy of KIA MOTORS AMERICA, INC.

11. Disconnect the AVM unit connector (A) and loosen the bolt (B).

    Courtesy of KIA MOTORS AMERICA, INC.

12. Disconnect the passenger compartment junction box connectors (A).

    Courtesy of KIA MOTORS AMERICA, INC.

13. Disconnect the BCM unit connectors (A).

    Courtesy of KIA MOTORS AMERICA, INC.

14. Disconnect the multi box connectors (A).

    [Driver"s]

    Courtesy of KIA MOTORS AMERICA, INC.

    [Passenger"s]

    Courtesy of KIA MOTORS AMERICA, INC.

15. Remove the air duct (A) and disconnect the smart key unit connector (B), and evaporator core sensor (C).

    Courtesy of KIA MOTORS AMERICA, INC.

16. Disconnect the heater and blower unit connector.

    [Driver"s]

    1. Disconnect the mode actuator (A) and temperature actuator (B).

    Courtesy of KIA MOTORS AMERICA, INC.

    [Passenger"s]

    1. Disconnect the temperature actuator (A), cluster ionizer (B) and resistor connector (C).

       Courtesy of KIA MOTORS AMERICA, INC.

    2. Disconnect the intake actuator connector (A).

       Courtesy of KIA MOTORS AMERICA, INC.

    3. Disconnect the blower motor connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

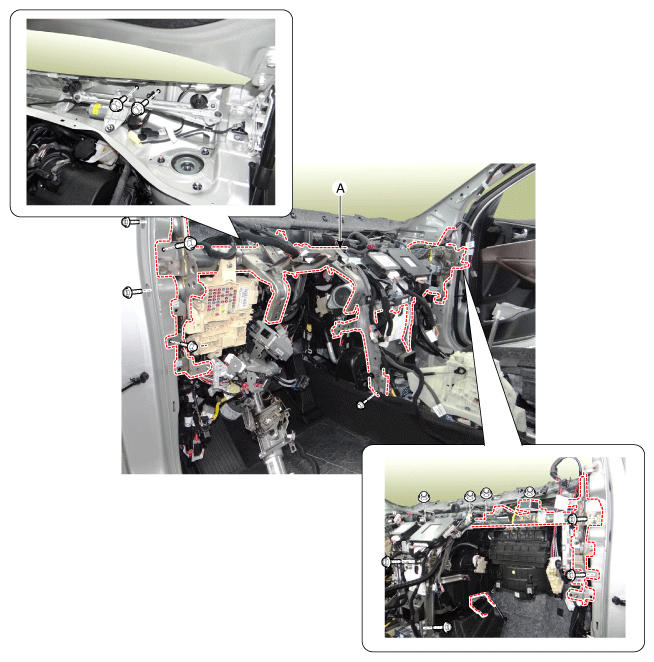

17. After loosening the mounting bolts and nuts, then remove the cowl cross bar assembly (A).

    Courtesy of KIA MOTORS AMERICA, INC.

18. Install in the reverse order of removal.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
