Air Cleaner Element

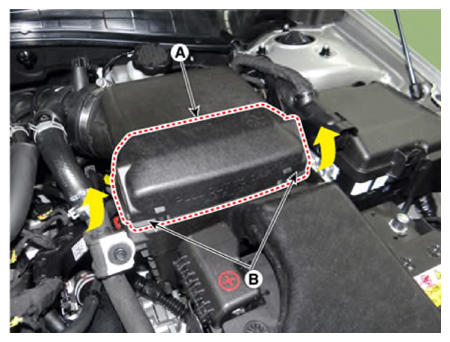

  1. Open the air cleaner element cover (A) by lifting down the air cleaner element cover handle (B).
    G12921914Courtesy of KIA MOTORS AMERICA, INC.

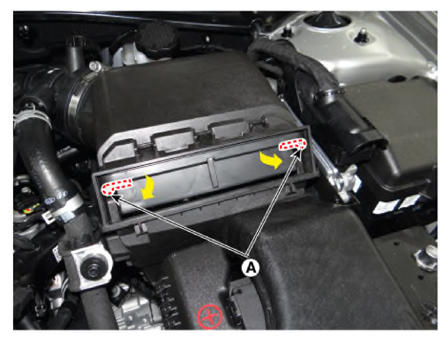

  2. Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.
    G12921915Courtesy of KIA MOTORS AMERICA, INC.

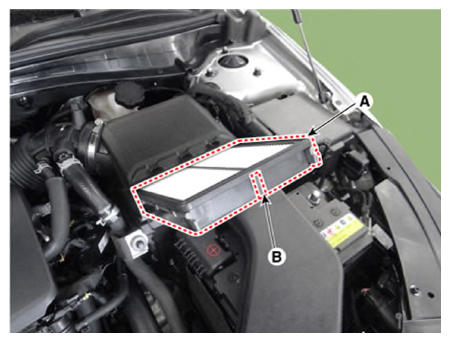

  3. Replace the air cleaner element (A) with a new one.
    G12921916Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Grab the handle (B) then pull out the air cleaner element.

  4. Close the service cover by hooking the clamp.
