Terminal and Connector Inspection

  1. Many malfunctions in the electrical system are caused by poor connection. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
  2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
  3. Has a problem been found?
    G12905221Courtesy of KIA MOTORS AMERICA, INC.

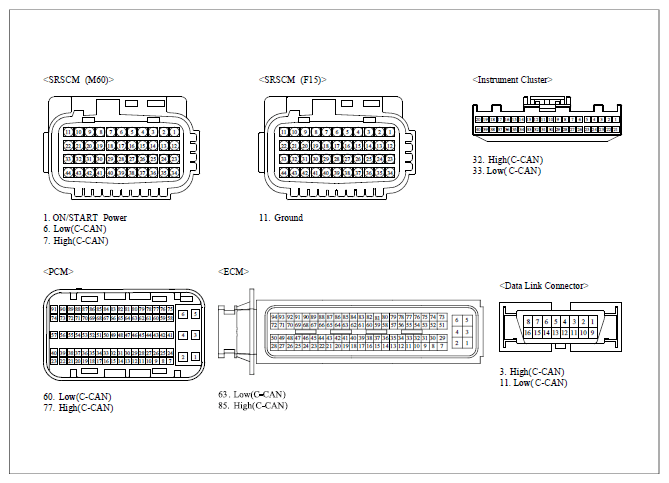

    G12905222Courtesy of KIA MOTORS AMERICA, INC.

    YES

    NO
