Body Sensor Reset

  1. Ignition "OFF", connect KDS.
  2. Ignition "ON", select Passenger Occupant Detecting System and select "Body Sensor Reset" mode.
  3. And then press "ENTER"

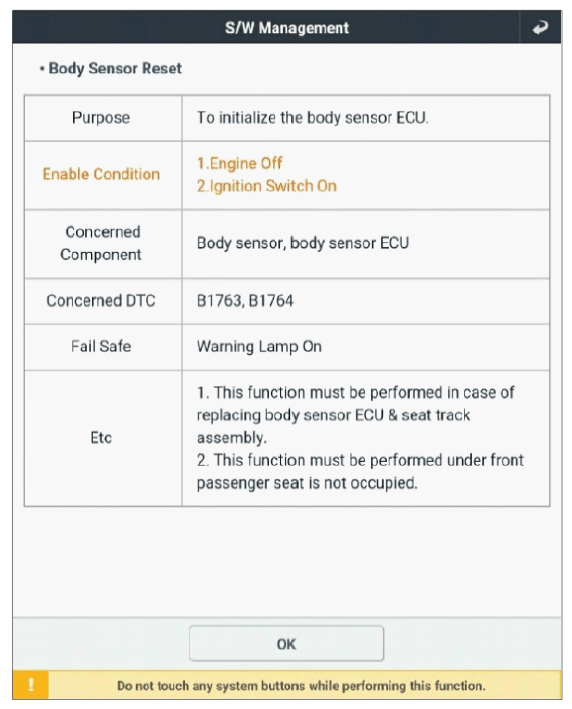

    G12905216Courtesy of KIA MOTORS AMERICA, INC.

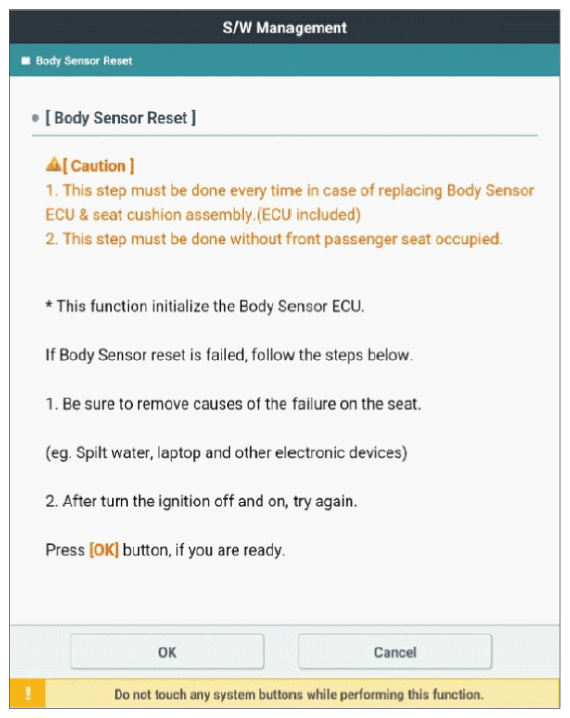

    G12905217Courtesy of KIA MOTORS AMERICA, INC.

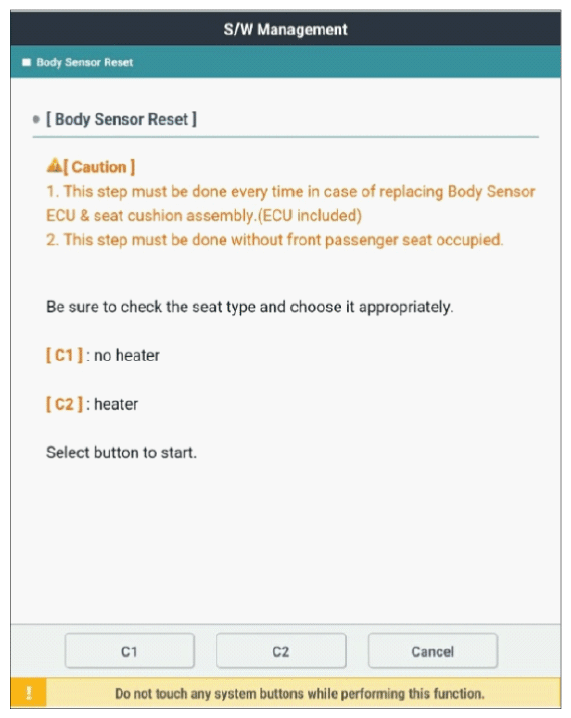

    G12905218Courtesy of KIA MOTORS AMERICA, INC.

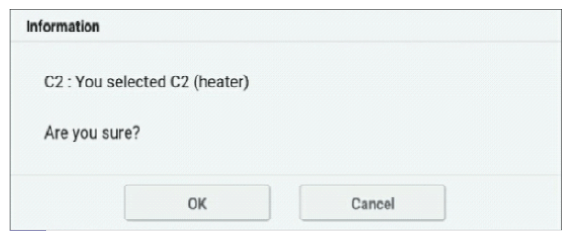

    G12905219Courtesy of KIA MOTORS AMERICA, INC.

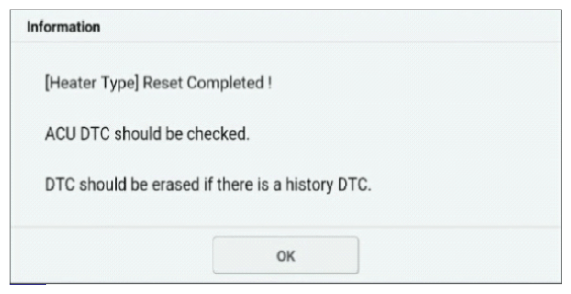

    G12905220Courtesy of KIA MOTORS AMERICA, INC.
  4. Turn Ignition "OFF" and then "ON"
  5. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
  6. Clear all DTCs in the system with KDS.
  7. Re-check DTC in the system with KDS.
  8. Is DTC stored in the system?

    YES

    NO

    • Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
