Assembly Check (ECU replacement) - EPB integrated ESP (ESC) ECU Only

1. Ignition "OFF"
2. Connect KDS to Data Link Connector (DLC).
3. Ignition "ON"

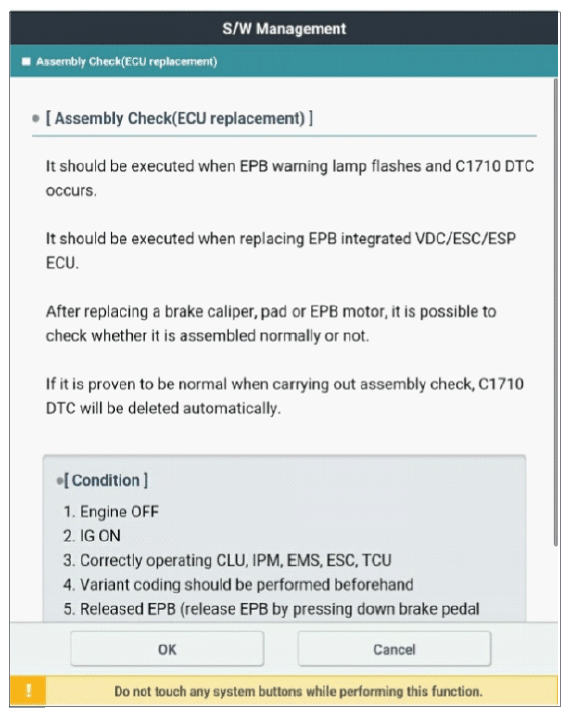

4. Select "Vehicle S/W Management" on KDS.

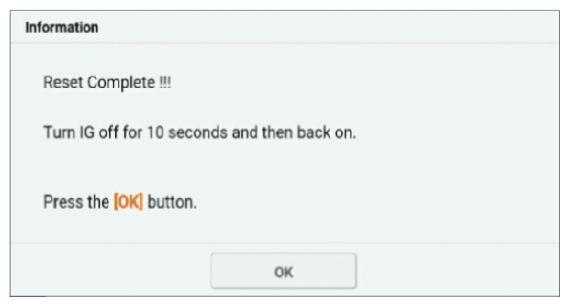

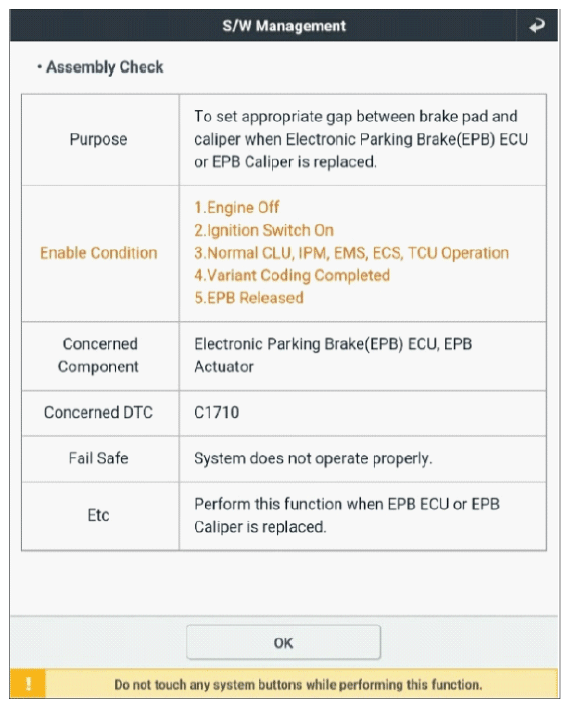

5. Perform "Assembly Check (ECU replacement)" in "Vehicle S/W Management" with KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
