Monitor DTC Status

  1. Connect KDS to Data Link Connector (DLC).
  2. Ignition "ON"
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
    G12905053Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    NO



  1. Connect KDS to Data Link Connector (DLC).
  2. Ignition "ON"
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

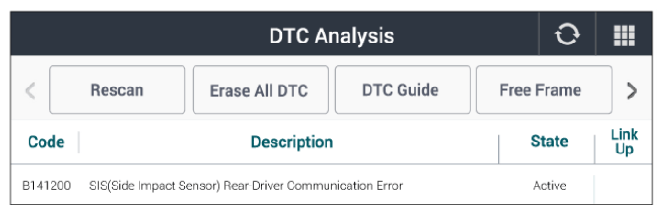

    G12905059Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    NO
