Component Inspection
- Ignition "ON".

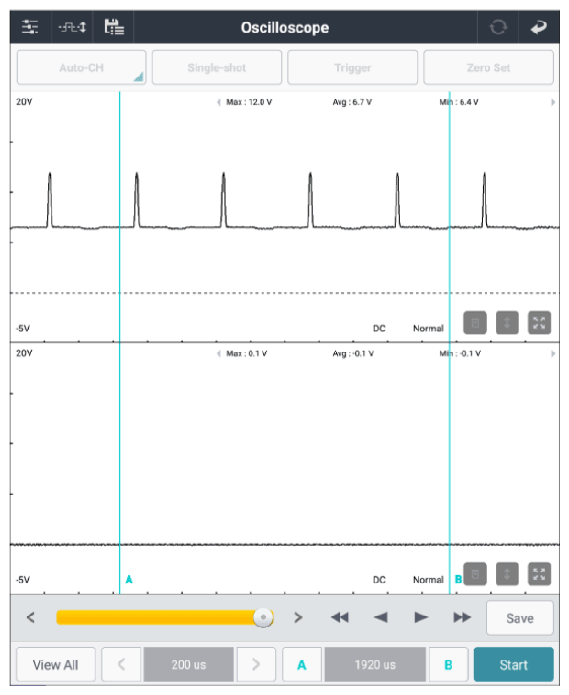

- Measure signal waveform between Pin No. 1 (High) terminal of the Side Impact Sensor Front-Passenger harness connector and chassis ground.
- Measure signal waveform between Pin No. 2 (Low) terminal of the Side Impact Sensor Front-Passenger harness connector and chassis ground.
Specification: Refer to below
- Is the measured resistance within specifications?
YES
- Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace the Side Impact Sensor Front-Passenger and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
