Monitor KDS Data

  1. Connect KDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

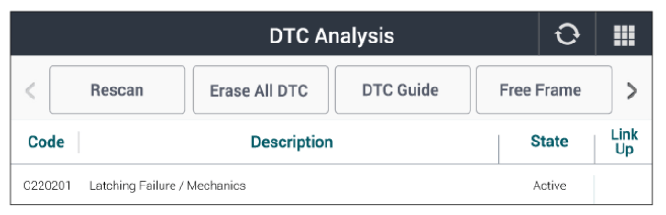

    G12926971Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    NO

    • Fault is intermittent caused by poor contact in the EPB ECU's connector or was repaired and EPB ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.


  1. Connect KDS to Data Link Connector (DLC).
  2. Engine "ON"
  3. Turn on EPB Switch.
  4. Monitor parameter on "Current Data" with KDS.

    Specification:  Refer to Figure below

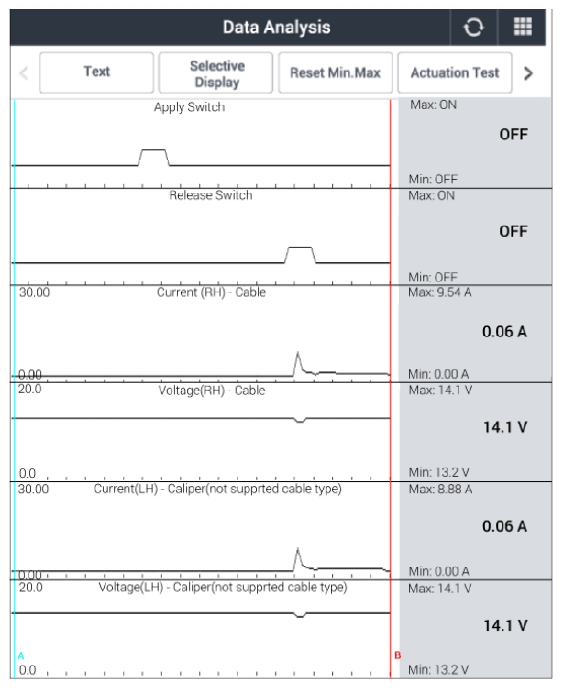

    G12926972Courtesy of KIA MOTORS AMERICA, INC.
  5. Is parameter displayed within specification?

    YES

    • Fault is intermittent caused by poor contact in the EPB ECU's connector or was repaired and EPB ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
