Monitor KDS Data
- Connect KDS to Data Link Connector (DLC).
- Ignition "ON".

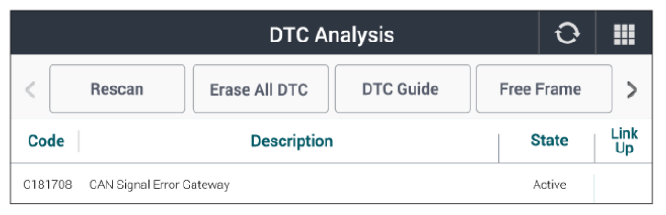

- Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
- Is DTC status displayed as Present?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
