Variant Coding

  1. Ignition "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition "ON"
  4. Select "Vehicle S/W management" on KDS.
  5. Perform "Variant Coding" in "Vehicle S/W management" with KDS.

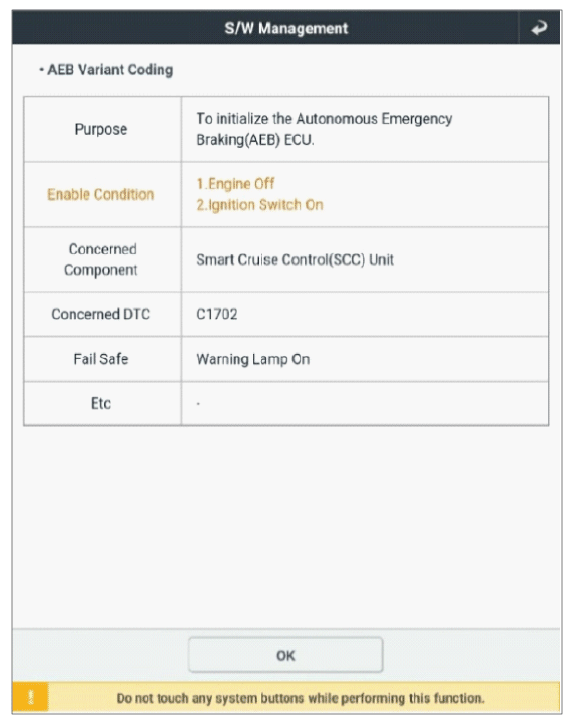

G12926916Courtesy of KIA MOTORS AMERICA, INC.

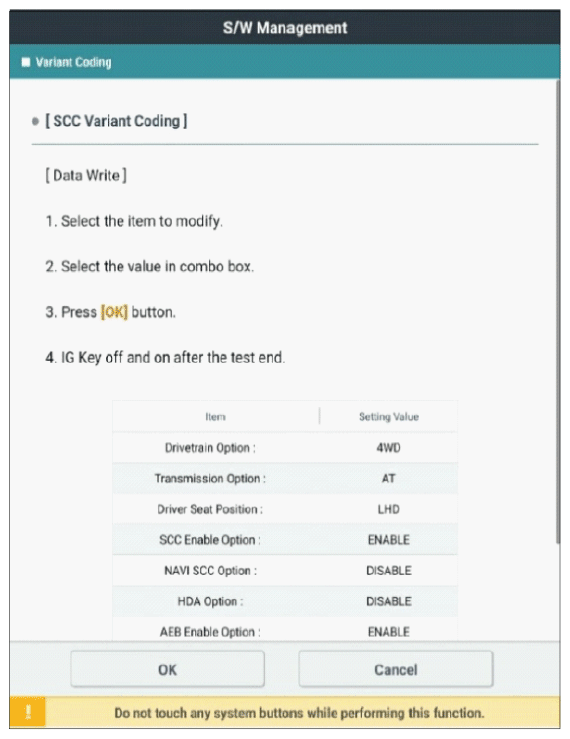

G12926917Courtesy of KIA MOTORS AMERICA, INC.

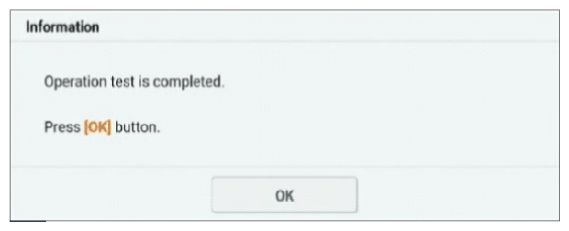

G12926918Courtesy of KIA MOTORS AMERICA, INC.
