Monitor KDS status

Connect KDS to Data Link Connector (DLC).
Ignition "ON".

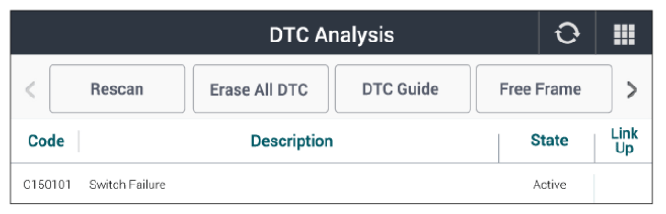

Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "MONITOR KDS DATA " procedure.
NO
- Fault is intermittent caused by poor contact in the EPB ECU's connector or was repaired and EPB ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
