Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

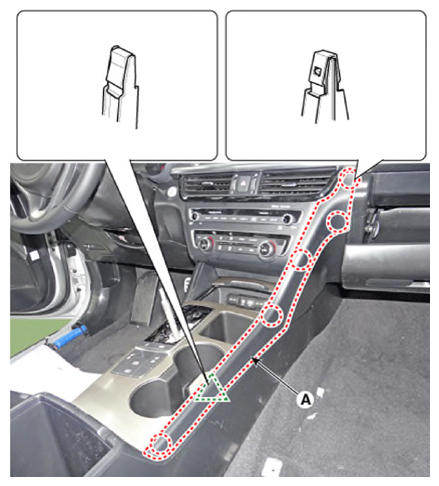

1. Using a remover, remove the console garnish (A).

   Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the glove box mounting hole cap (A).

   Courtesy of KIA MOTORS AMERICA, INC.

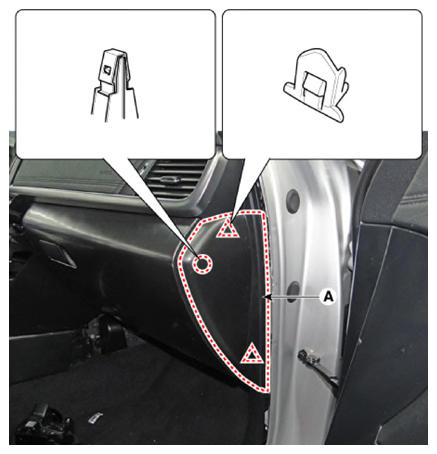

3. Using a remover, remove the crash pad side cover [RH] (A).

   Courtesy of KIA MOTORS AMERICA, INC.

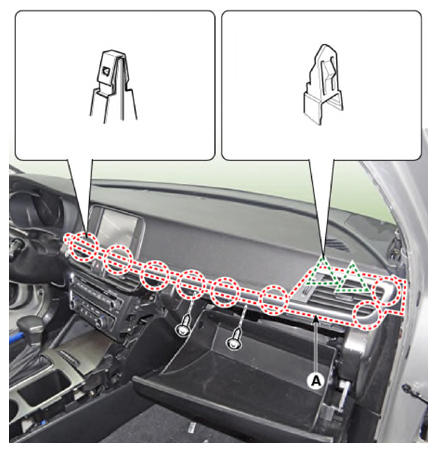

4. Remove the crash pad garnish [LH] (A).

   Courtesy of KIA MOTORS AMERICA, INC.

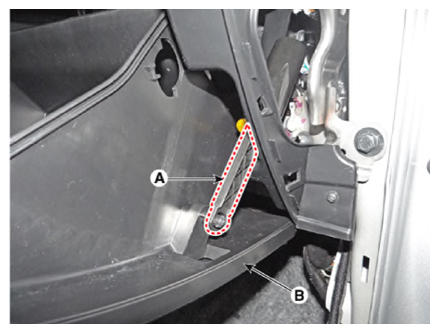

5. Disconnect the stopper (B) from the glove box (A).

   Courtesy of KIA MOTORS AMERICA, INC.

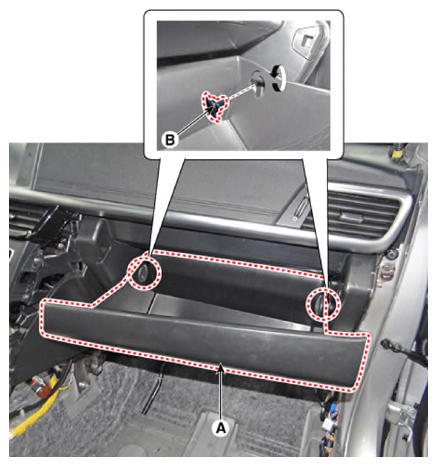

6. Disconnect the air damper (A) from the glove box (B).

   Courtesy of KIA MOTORS AMERICA, INC.

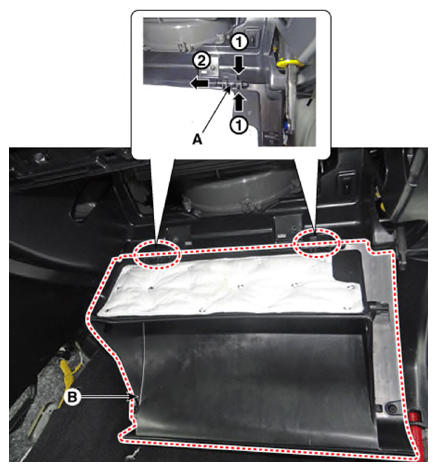

7. Disconnect the pins (A) and then remove the glove box (B).

   Courtesy of KIA MOTORS AMERICA, INC.

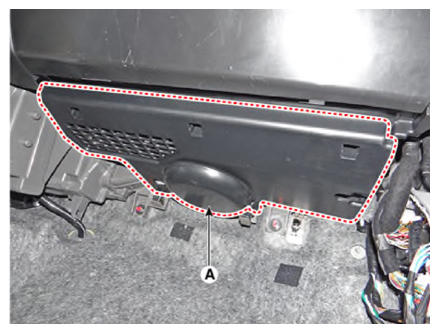

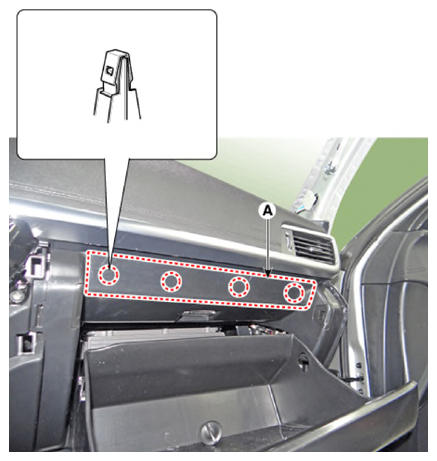

8. Remove the crash pad under cover [RH] (A).

   Courtesy of KIA MOTORS AMERICA, INC.

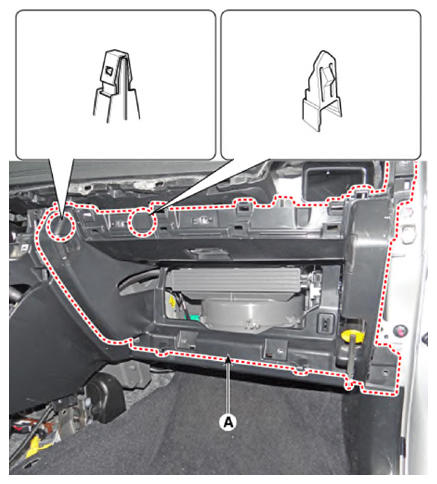

9. Separate the glove box housing (A) after loosening the mounting screws and bolts & nuts.

   Courtesy of KIA MOTORS AMERICA, INC.

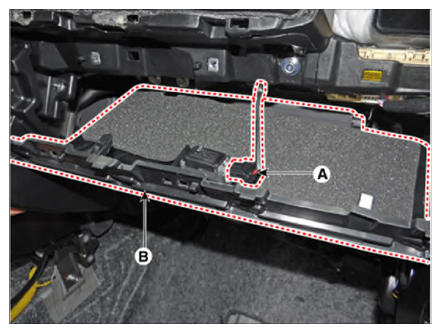

10. Disconnect the glove box lamp connector (A) and glove box housing (B).

    Courtesy of KIA MOTORS AMERICA, INC.

11. Install in the reverse order of removal.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips.
