[Center fascia panel]

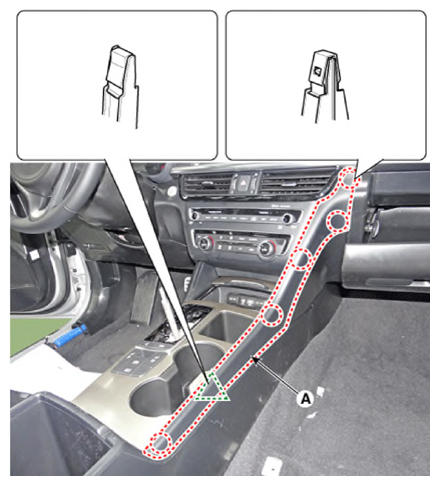

Using a remover, remove the console garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the glove box mounting hole cap (A).

Courtesy of KIA MOTORS AMERICA, INC.
Using a remover, remove the crash pad side cover [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad garnish [LH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

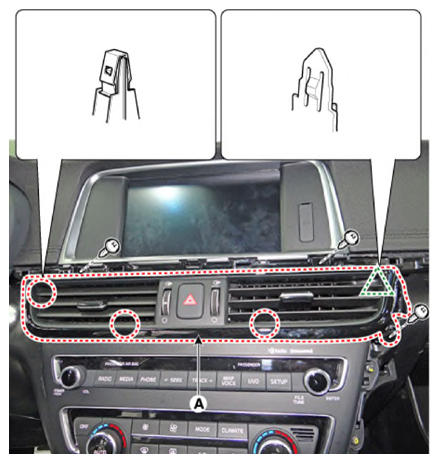

Separate the center fascia panel (A) after loosening the screw.

Courtesy of KIA MOTORS AMERICA, INC.

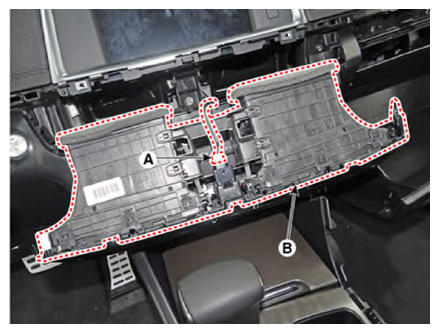

Disconnect the hazard switch connector (A) and then remove the center fascia panel (B).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips.
