[Center fascia lower panel]

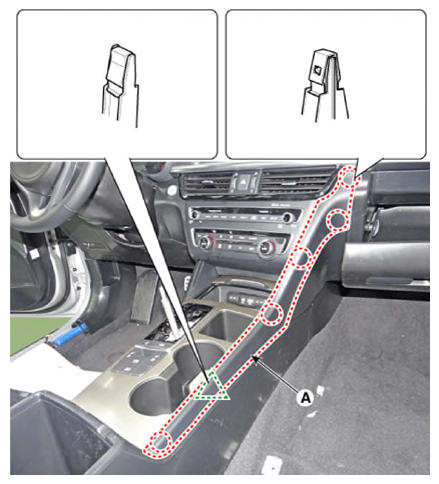

  1. Using a remover, remove the console garnish (A).
    G12919921Courtesy of KIA MOTORS AMERICA, INC.

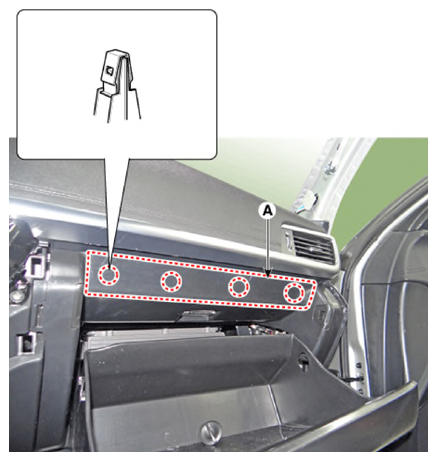

  2. Remove the glove box mounting hole cap (A).
    G12919922Courtesy of KIA MOTORS AMERICA, INC.
  3. Using a remover, remove the crash pad side cover [RH] (A).
    G12919923Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the crash pad garnish [LH] (A).
    G12919924Courtesy of KIA MOTORS AMERICA, INC.

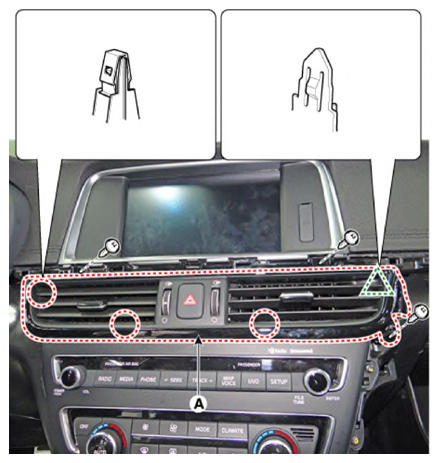

  5. Separate the center fascia panel (A) after loosening the screw.
    G12919925Courtesy of KIA MOTORS AMERICA, INC.

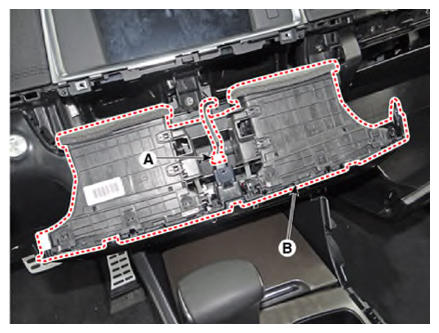

  6. Disconnect the hazard switch connector (A) and then remove the center fascia panel (B).
    G12919926Courtesy of KIA MOTORS AMERICA, INC.

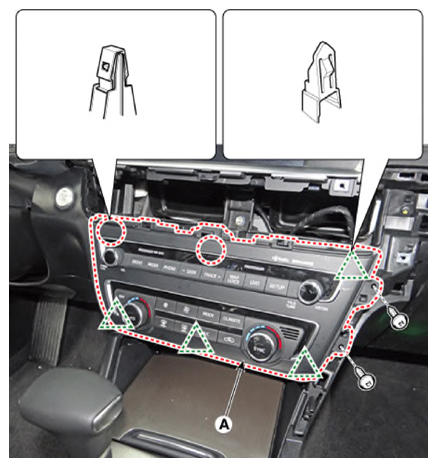

  7. Separate the center fascia lower panel (A) after loosening the screw.
    G12919927Courtesy of KIA MOTORS AMERICA, INC.

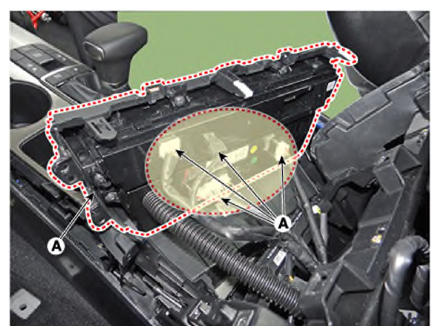

  8. Disconnect the connectors & hose and remove the center fascia lower panel (A).
    G12919928Courtesy of KIA MOTORS AMERICA, INC.

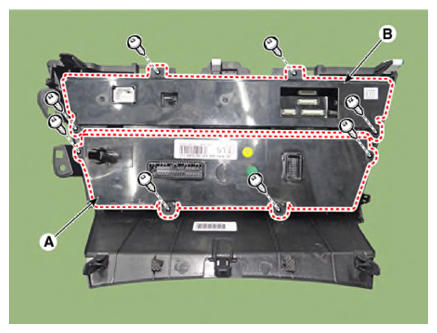

  9. Remove the heater unit (A) & audio unit (B) after loosening the screw.
    G12919929Courtesy of KIA MOTORS AMERICA, INC.
  10. Install in the reverse order of removal.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips.
