Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. HEV Not Ready or Ready
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning Function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 6
CAUTION: In case of replacing TCM or Clutch pack perform following procedures.

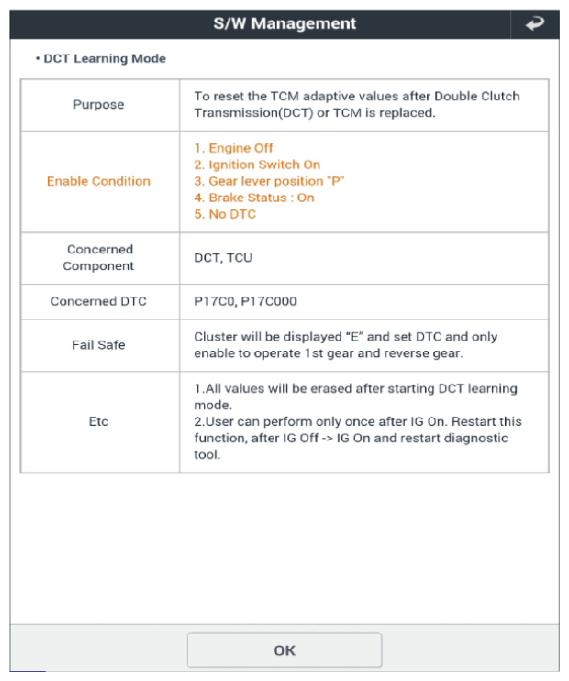

G13460572Courtesy of KIA MOTORS AMERICA, INC.

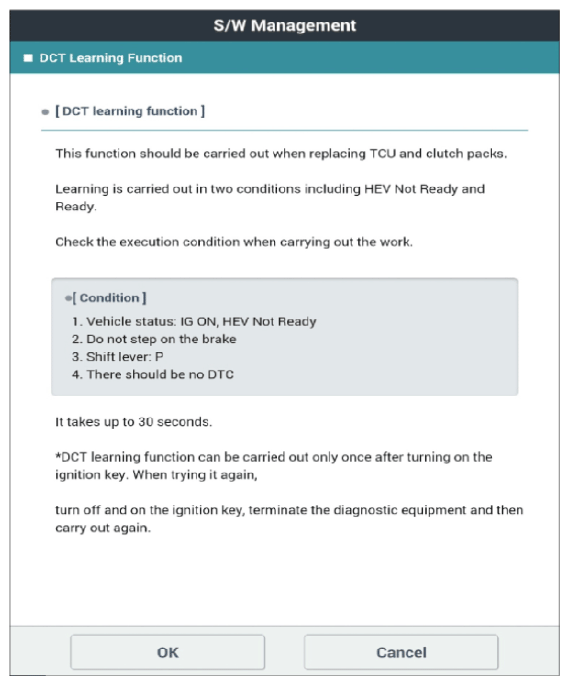

G13460573Courtesy of KIA MOTORS AMERICA, INC.

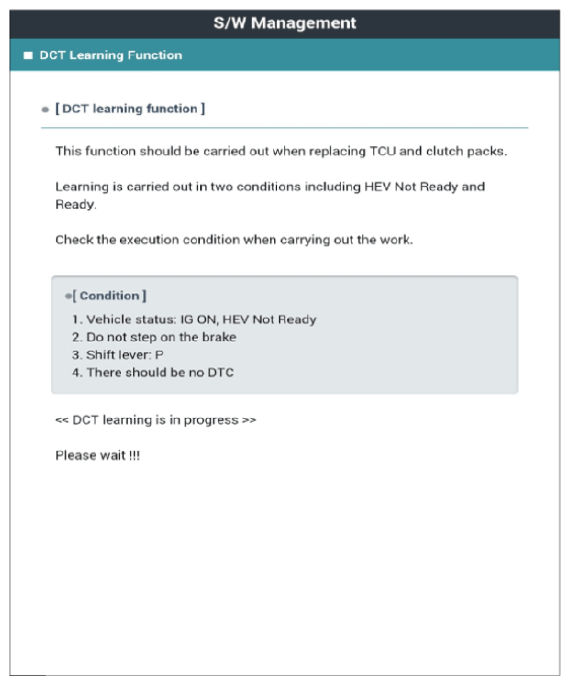

G13460574Courtesy of KIA MOTORS AMERICA, INC.

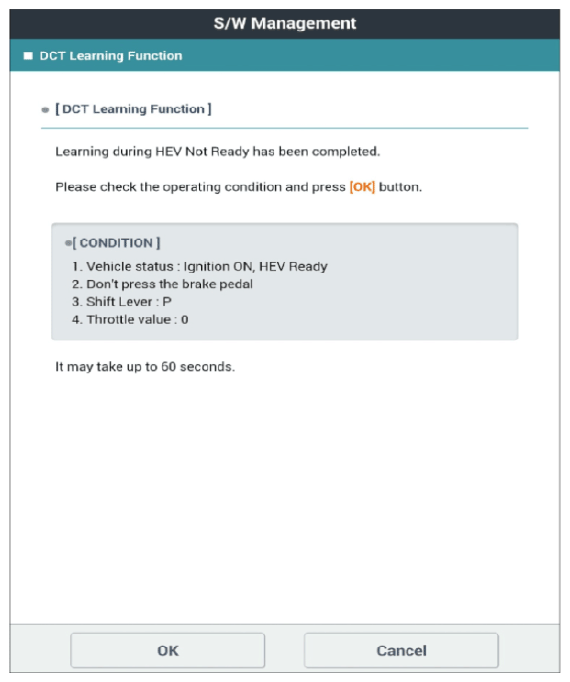

G13460575Courtesy of KIA MOTORS AMERICA, INC.

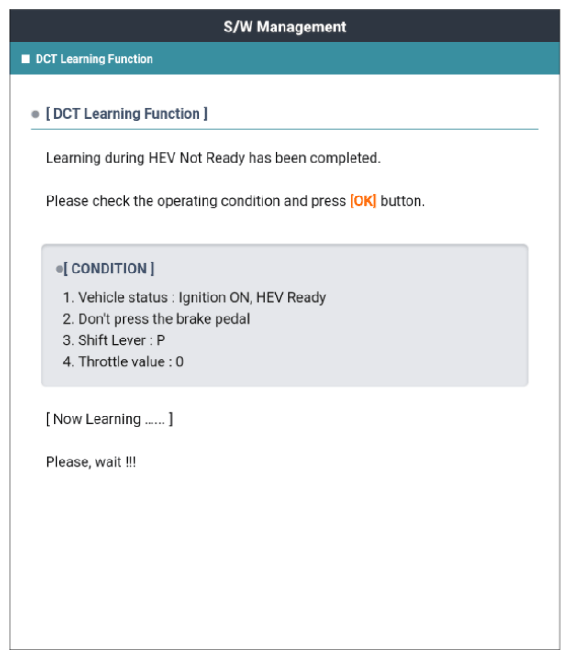

G13460576Courtesy of KIA MOTORS AMERICA, INC.

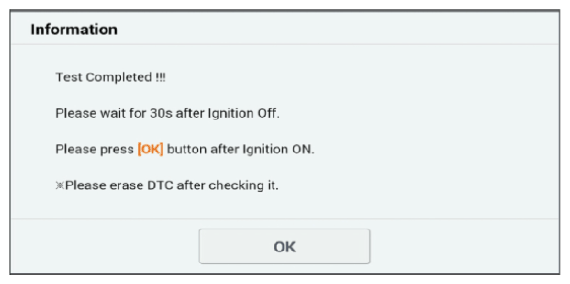

G13460577Courtesy of KIA MOTORS AMERICA, INC.
