Vehicle S/W Management
WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- HEV Not Ready or Ready
|
- Ignition switch "OFF"
- Connect KDS to Data Link Connector (DLC).
- Select the "Vehicle S/W Management" about related DTC with KDS.
- Perform

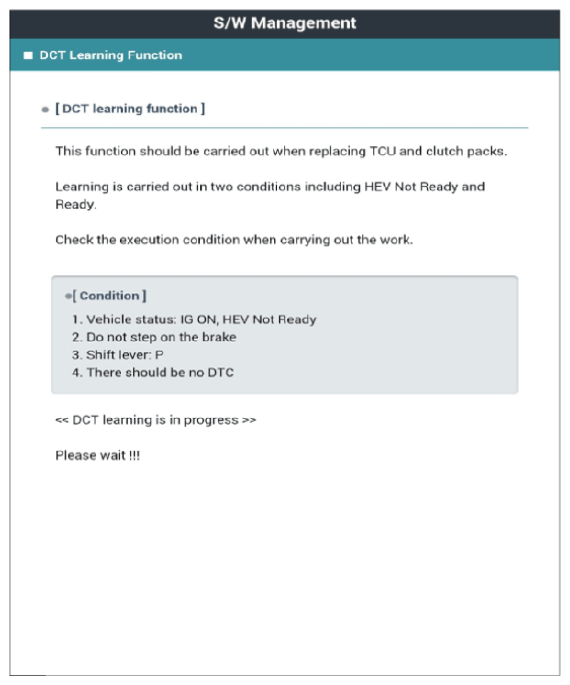

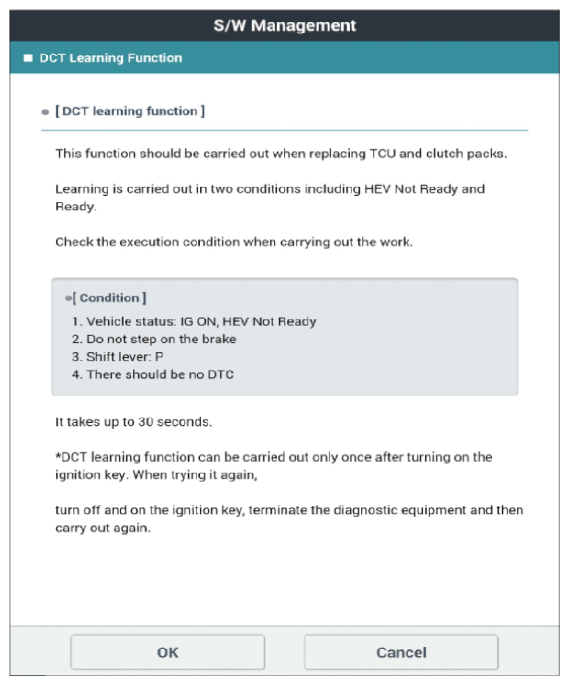

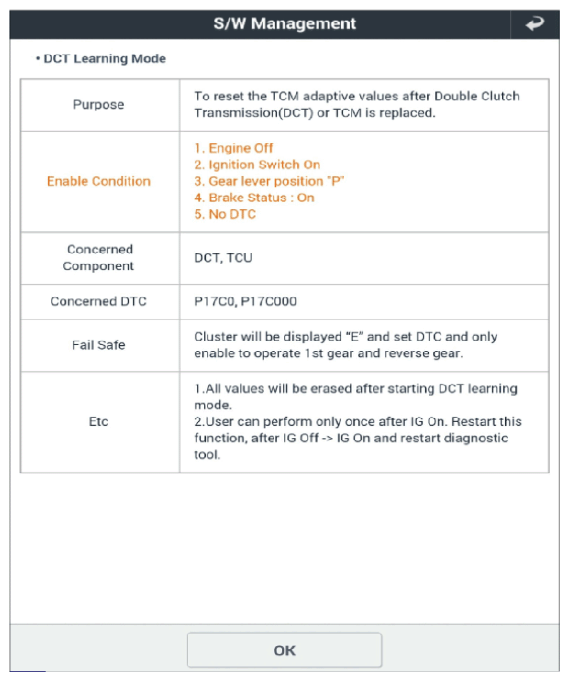

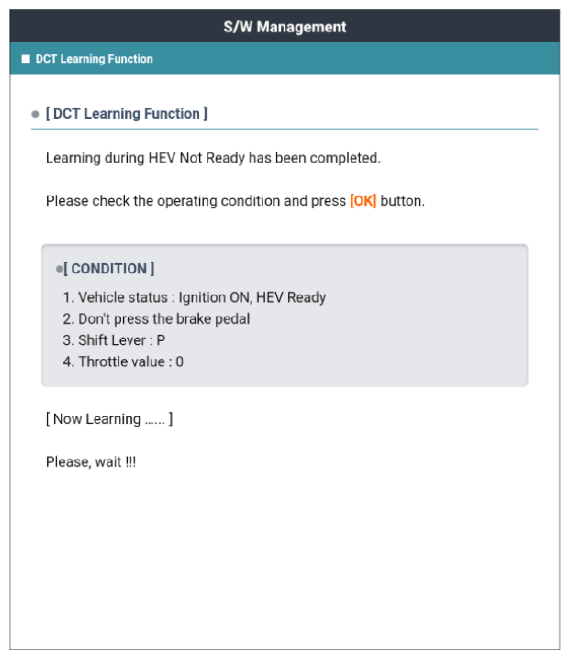

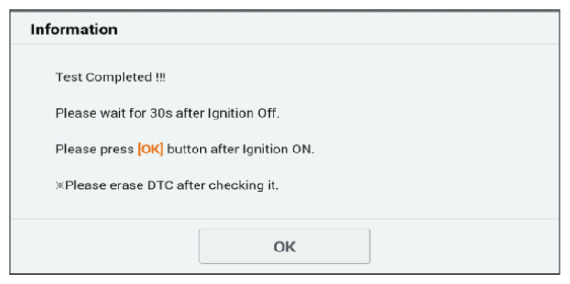

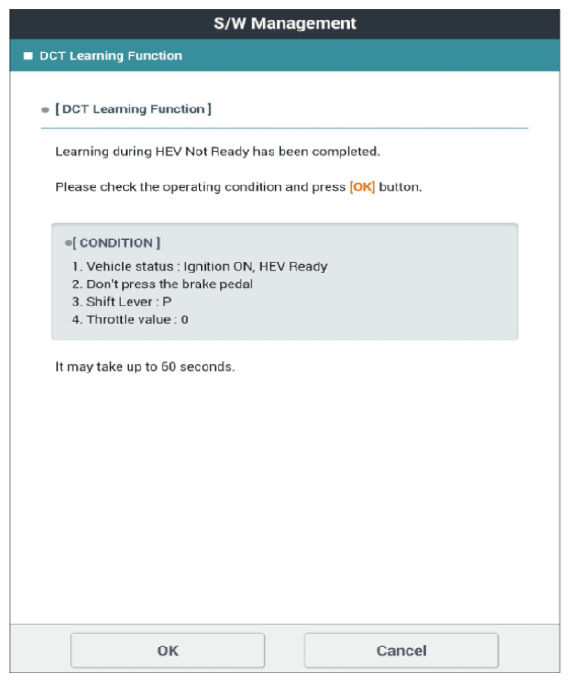

"DCT Learning Function" and go to "VERIFICATION OF REPAIR " procedure.
|

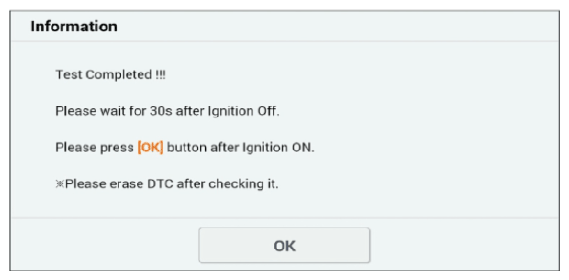

Fig.1 to 6 |
CAUTION:
In case of replacing TCM or Clutch pack perform following procedures.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Inspection Condition |
Inspection Procedure |
Reference |
- HEV Not Ready/Ignition "ON"
- Shift lever "P"
- Vehicle speed 0 km/h
|
- Ignition switch "OFF"
- Connect KDS to Data Link Connector (DLC).
- Ignition switch "ON" & Engine "OFF"
- Select the "Vehicle S/W Management" about related DTC with KDS.
- Perform

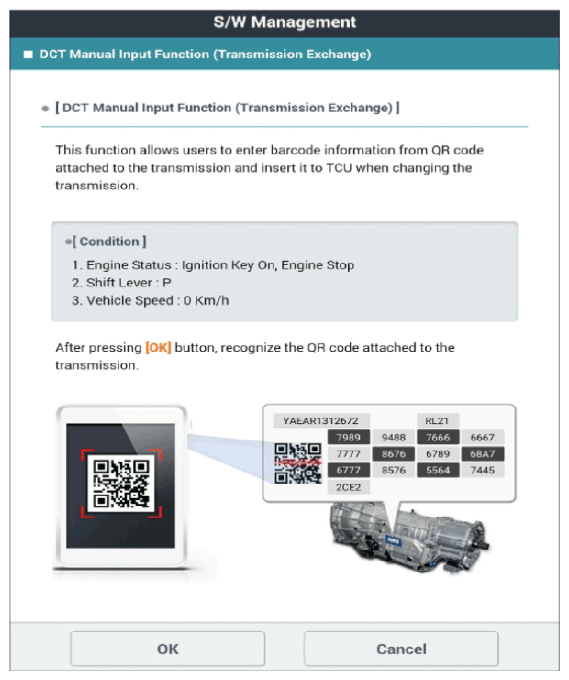

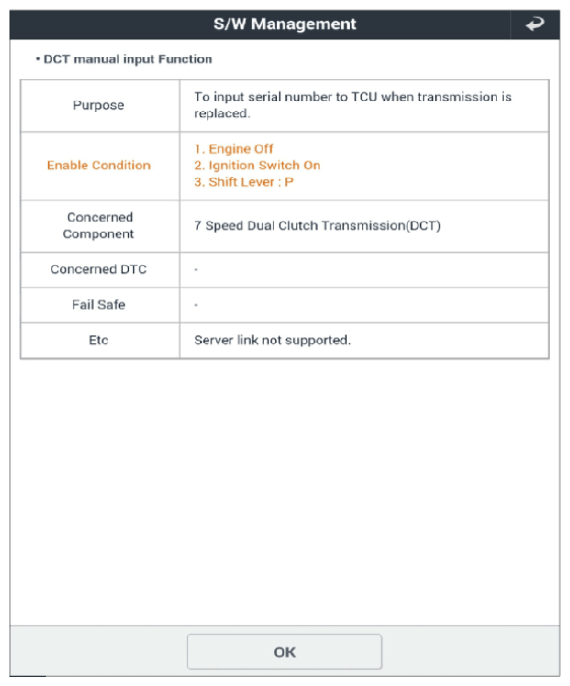

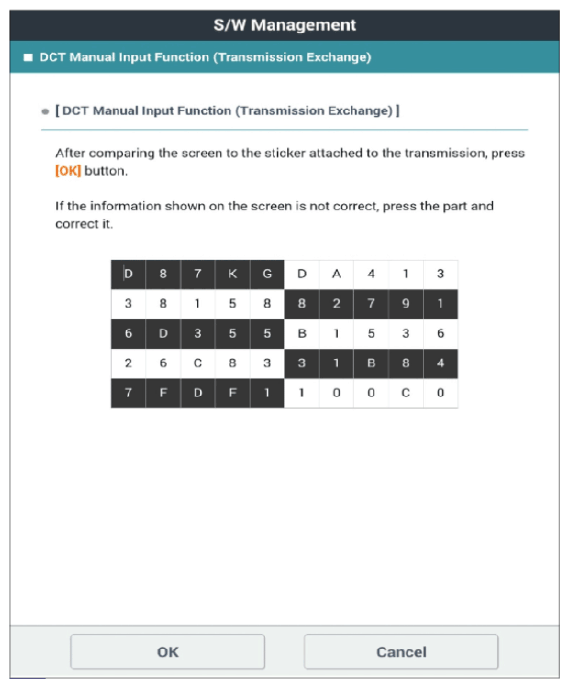

"DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.
|
Fig.1 to 4 |
CAUTION:
In case of replacing DCT perform following procedures
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
