Monitor KDS Data

WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

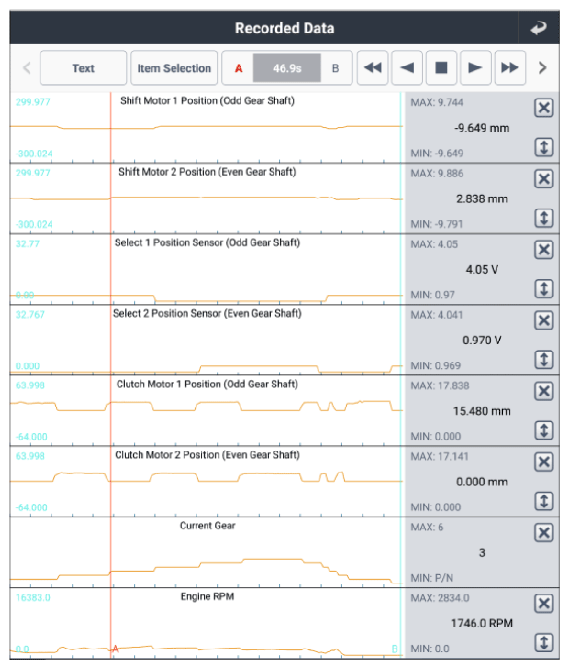

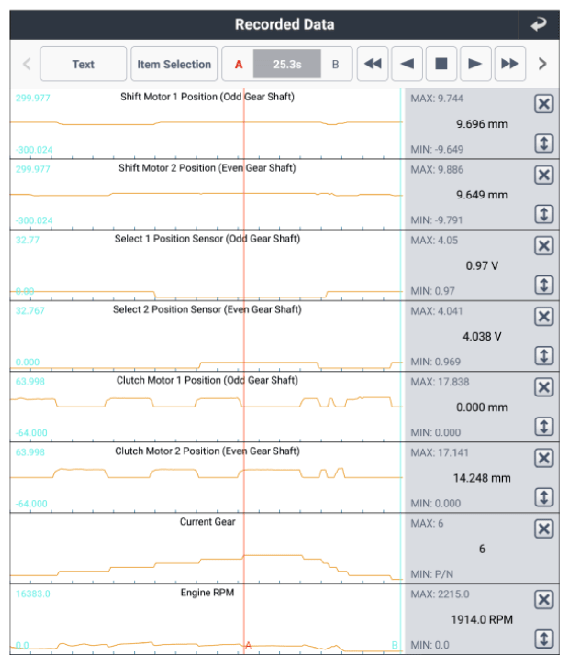

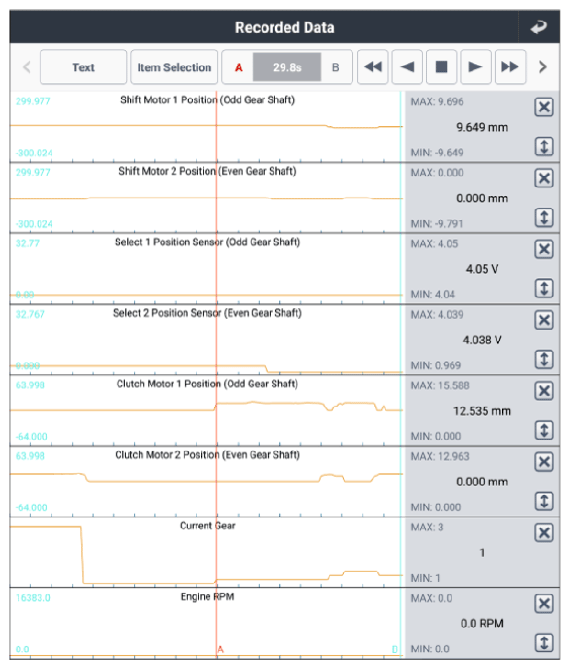

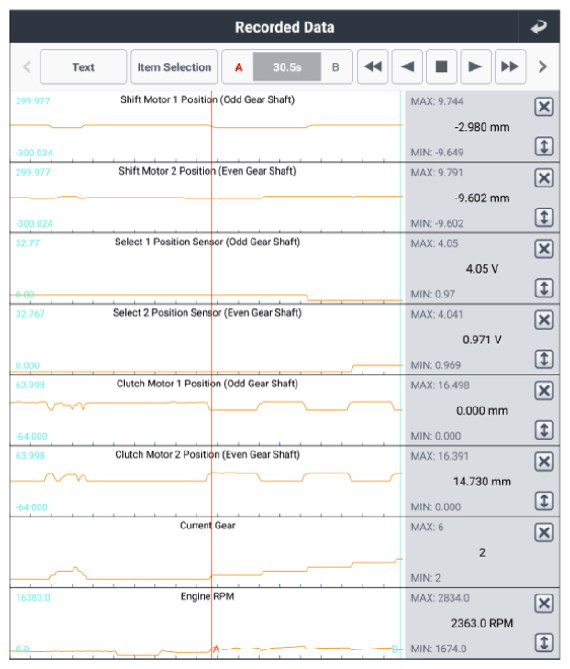

Ignition "ON". Engine "ON"/HEV Ready	Connect KDS to Diagnostic Trouble Codes (DTC). Refer to "LIFT AND SUPPORT POINTS " and lift vehicle with suitable lift. Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition. Move selector lever from "P" range to "D" range. And Driving at 1st gear to 6th gear. Monitor "Clutch Motor 1, 2 position" parameter in "Current Data" with KDS.	Fig.1 to 6

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
