Component Inspection: Notes

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: HEV battery system uses high voltage.
It may cause death or damage due to electrical shock, if you do not follow below Instructions.

Follows instructions of appropriate service information.
Wear and use insulated gloves and tools.
Ignition "OFF", Disconnect ground cable of auxiliary battery and "OFF" the safety connector of the high voltage battery.
Check high voltage terminal on Power Relay Assembly is lower than 30V.
Be careful that it should not be short between terminals when measuring battery cell voltage.
You may be injured due to spark, parts damage or electrical shock.
Metallic material cause high voltage short that may cause damage of life or vehicle. Therefore, get rid of all the metallic material before working. (Metallic Material: Watch, Ring, any metallic products etc.)
After disconnect high voltage cable, be careful not to happen short between exposed terminals on high voltage connector.

Inspection Condition	Inspection Procedure	Reference

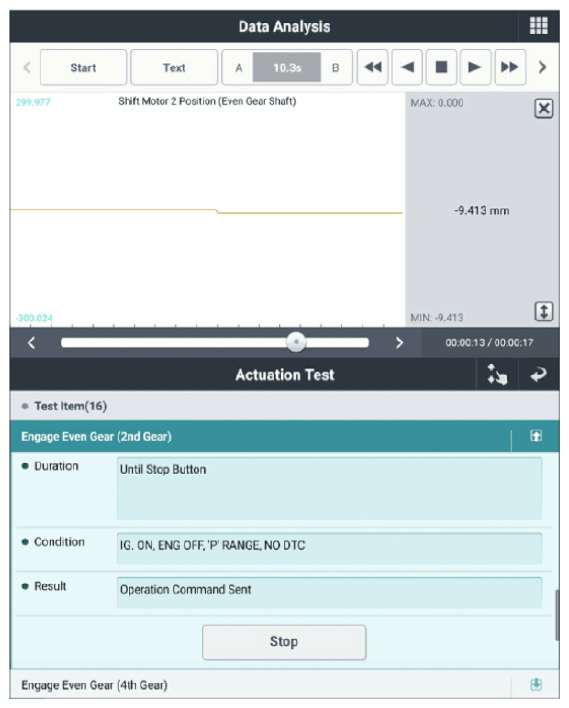

Ignition "ON". NO DTC Shift lever "P"	Ignition "OFF" Connect KDS to Diagnostic Trouble Codes (DTC). Ignition "ON" Perform "Engage Even Gear (2nd Gear)" in "Actuation Test" with KDS. Monitor "Shift Motor 2 Position (Even Gear Shaft)" in "Current Data" with KDS.	Fig.1

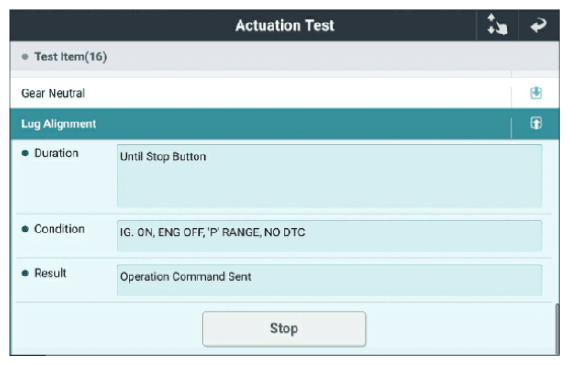

Ignition "ON". NO DTC Shift lever "P"	Ignition "OFF" Connect KDS to Diagnostic Trouble Codes (DTC). Ignition "ON" Perform "Lug Alignment" in "Actuation Test" with KDS.	Fig.2

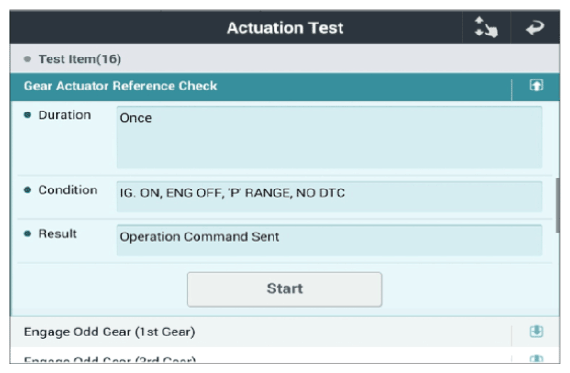

Ignition "ON". NO DTC Shift lever "P"	Ignition "OFF" Connect KDS to Diagnostic Trouble Codes (DTC). Ignition "ON" Perform "Gear Actuator Reference Check" in "Actuation Test" with KDS.	Fig.3

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, repair or replace Gear shift assembly and then go to "VERIFICATION OF REPAIR " procedure. (Perform "DCT Learning" in "Vehicle S/W Management" with KDS.)
Replace "DCT" and then go to "VERIFICATION OF REPAIR " procedure. (Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.)
