Monitor KDS Data

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

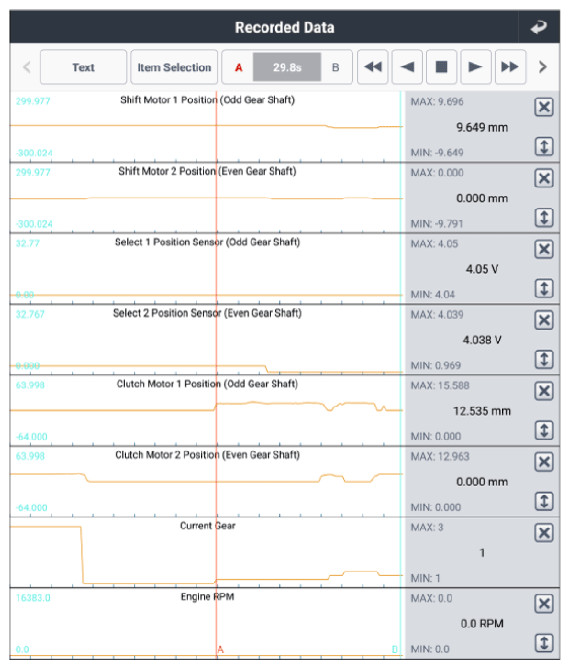

Ignition "ON". HEV Ready	Ignition "OFF" Connect KDS to Diagnostic Trouble Codes (DTC). Refer to "LIFT AND SUPPORT POINTS " and lift vehicle with suitable lift. Engine "ON"/HEV Ready Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition. Monitor selected parameters shown below in "Current Data" with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

Repeat "Monitor KDS Data" procedure few times and make sure every test result is very similar.
Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Go to "COMPONENT INSPECTION " procedure.
