Instrument Cluster Speaker

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center lower panel.

    (Refer to Body - " CRASH PAD CENTER PANEL  ")

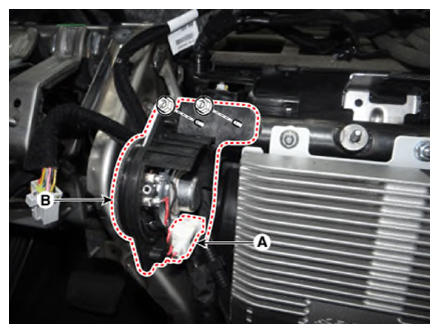

  3. Disconnect the instrument cluster speaker connector (A).
  4. Remove the instrument cluster speaker (B) after loosening the mounting nuts.
    G12698252Courtesy of KIA MOTORS AMERICA, INC.
