Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

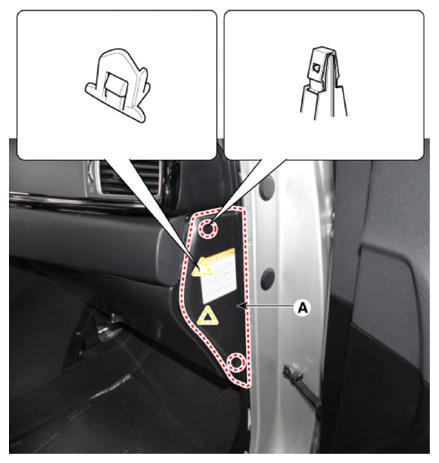

Remove the crash pad side cover [RH] (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

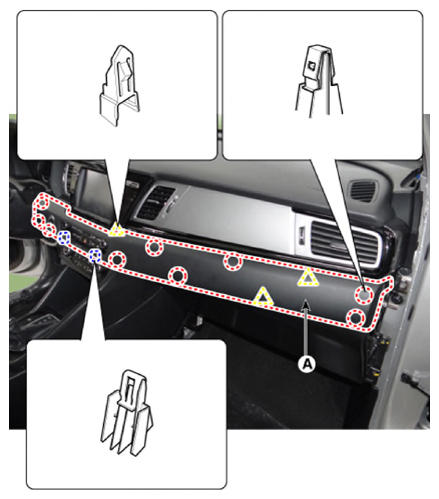

Remove the crash pad plate [RH] (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

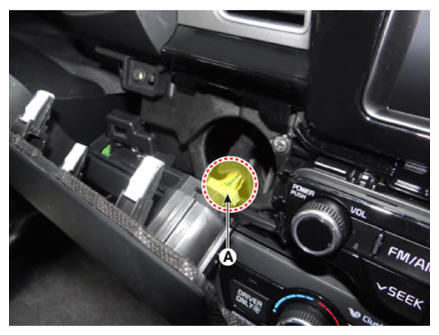

Disconnect the start/stop button connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

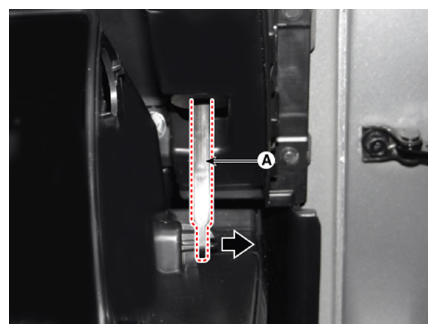

Disconnect the stopper (B) from the glove box (A).

Courtesy of KIA MOTORS AMERICA, INC.

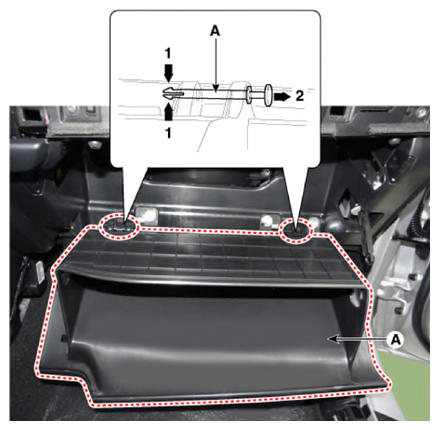

Disconnect the air damper (A) from the glove box.

Courtesy of KIA MOTORS AMERICA, INC.

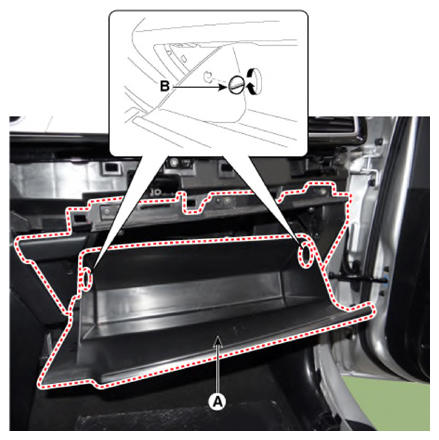

Disconnect the pins (A) and then remove the glove box (B).

Courtesy of KIA MOTORS AMERICA, INC.

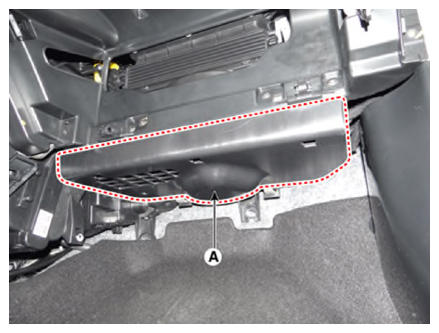

Remove the crash pad under cover [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

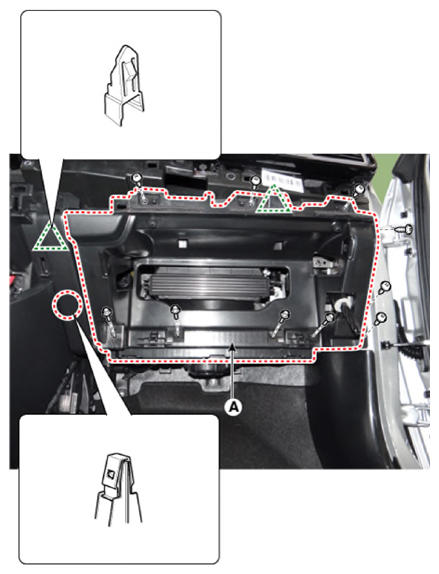

Remove the glove box housing (A) after loosening the mounting screws and bolts & nuts.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
CAUTION:
- Make sure the connector is connected properly.
- Replace any damaged clips.
