Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the crash pad side cover [RH] (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

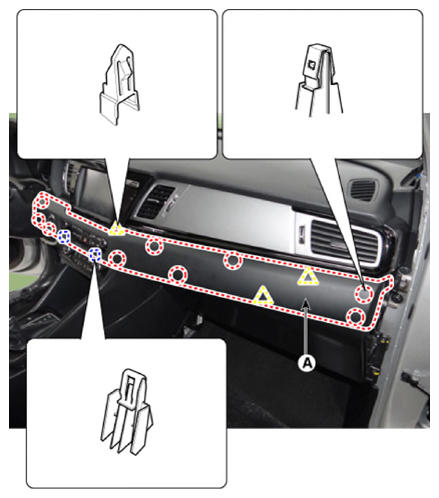

Remove the crash pad plate [RH] (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

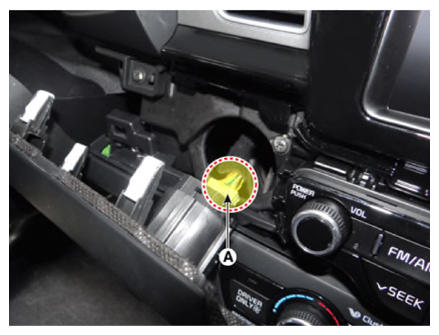

Disconnect the start/stop button connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
CAUTION:
- Make sure the connector is connected properly.
- Replace any damaged clips.
