Center fascia panel

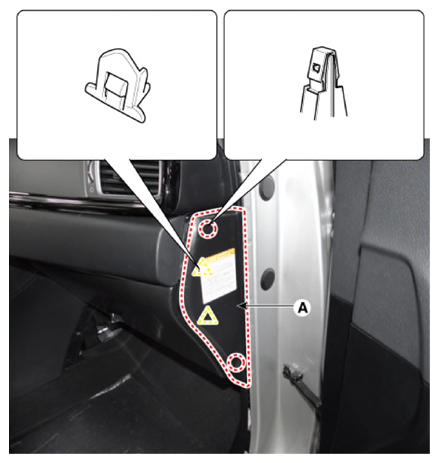

  1. Remove the crash pad side cover [RH] (A) by using a remover.
    G12697359Courtesy of KIA MOTORS AMERICA, INC.

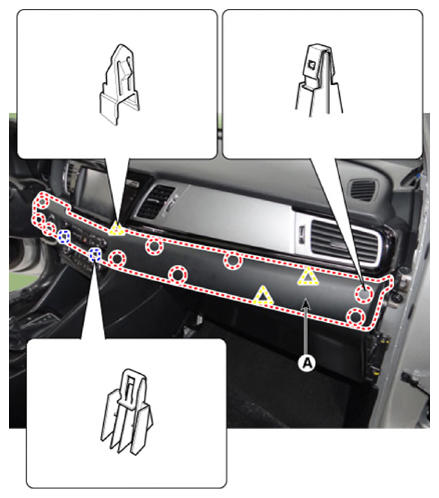

  2. Remove the crash pad plate [RH] (A) by using a remover.
    G12697360Courtesy of KIA MOTORS AMERICA, INC.

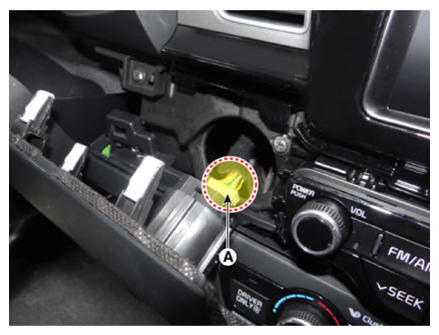

  3. Disconnect the start/stop button connector (A).
    G12697361Courtesy of KIA MOTORS AMERICA, INC.

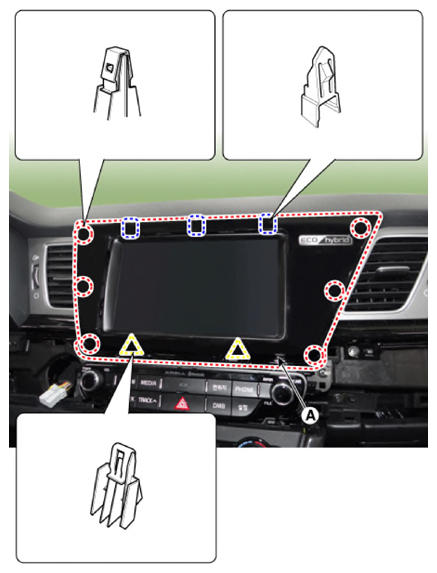

  4. Remove the center fascia panel (A) by using a remover.
    G12697362Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.

    Information

    CAUTION:
    • Make sure the connectors are connected properly.
    • Replace any damaged clips.
