Repair Procedures: Removal

  1. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

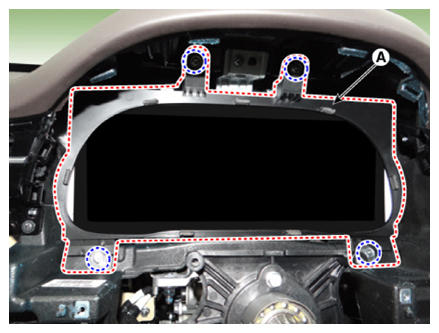

  2. Remove the instrument cluster (A) after loosening the mounting screws and bolts.
    G13128720Courtesy of KIA MOTORS AMERICA, INC.

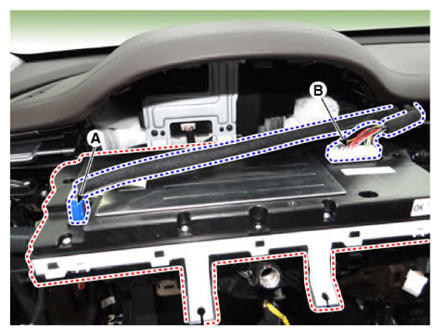

  3. Disconnect the connector (B) and cable (A) from the instrument cluster.
G13128721Courtesy of KIA MOTORS AMERICA, INC.
