System Inspection

Inspection Condition	Inspection Procedure	Reference
Ignition "ON"	Connect KDS to Data Link Connector (DLC). Select "Vehicle S/W Management" with KDS. Select "HUD Calibration" with KDS. Go to "VERIFICATION OF REPAIR " procedure after image calibration.	Figures below

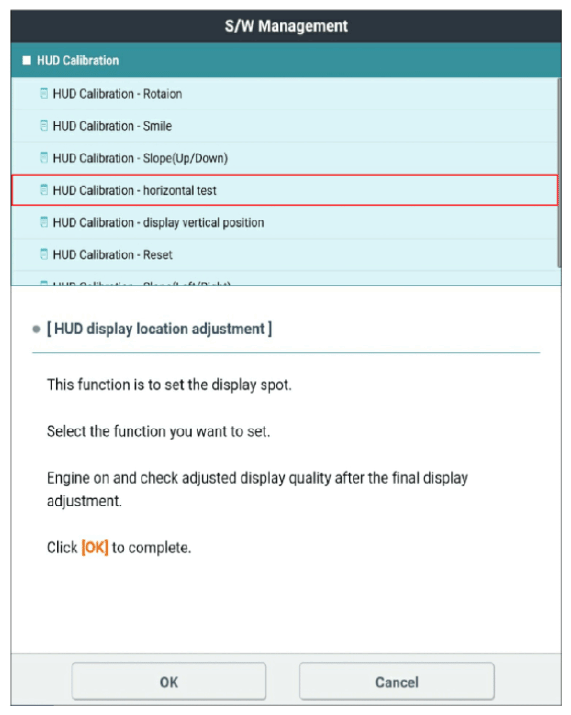

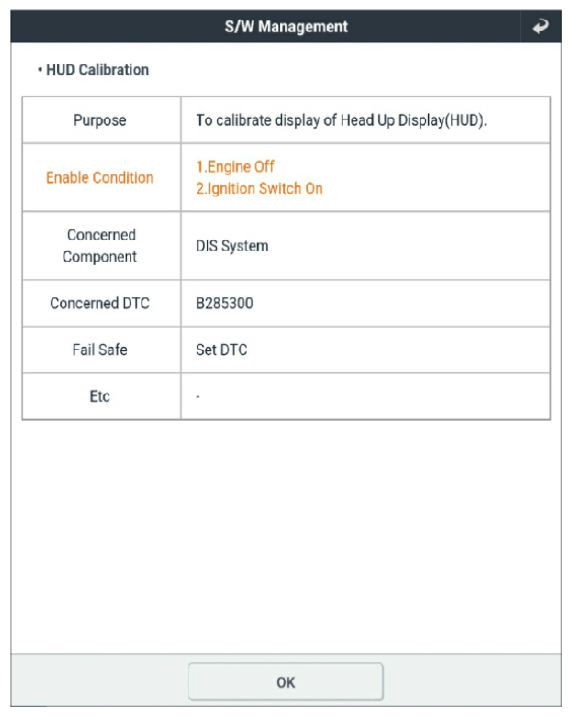

G13135149

Courtesy of KIA MOTORS AMERICA, INC.

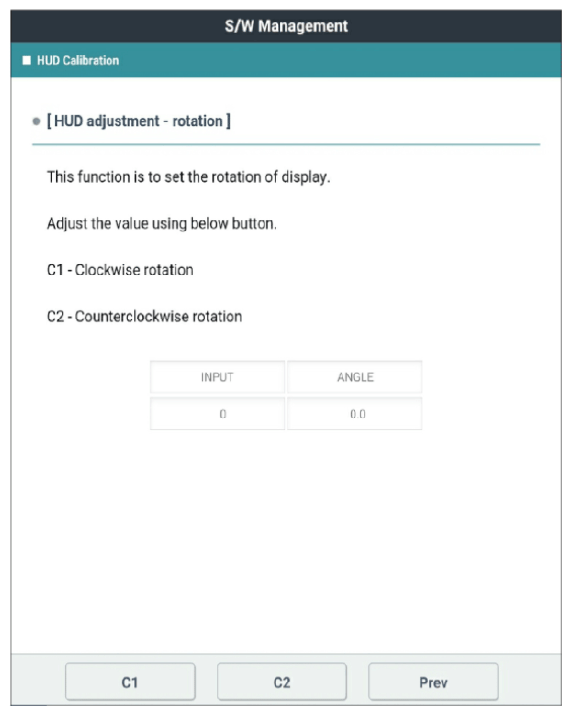

G13135150

Courtesy of KIA MOTORS AMERICA, INC.

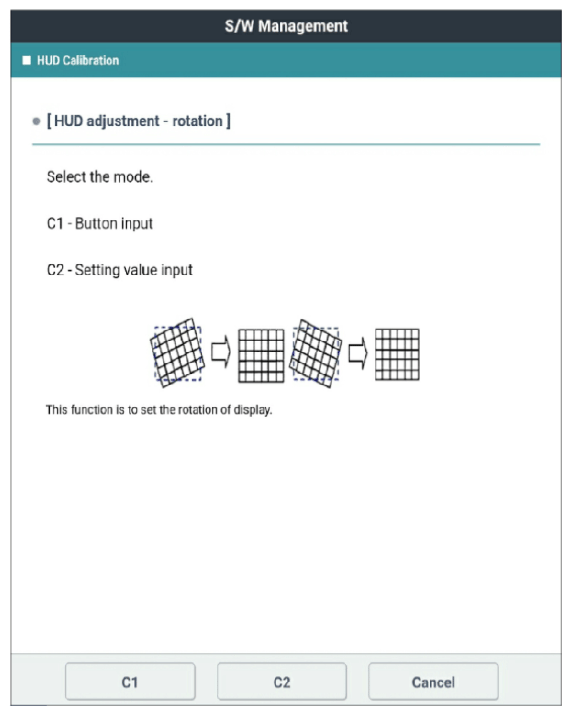

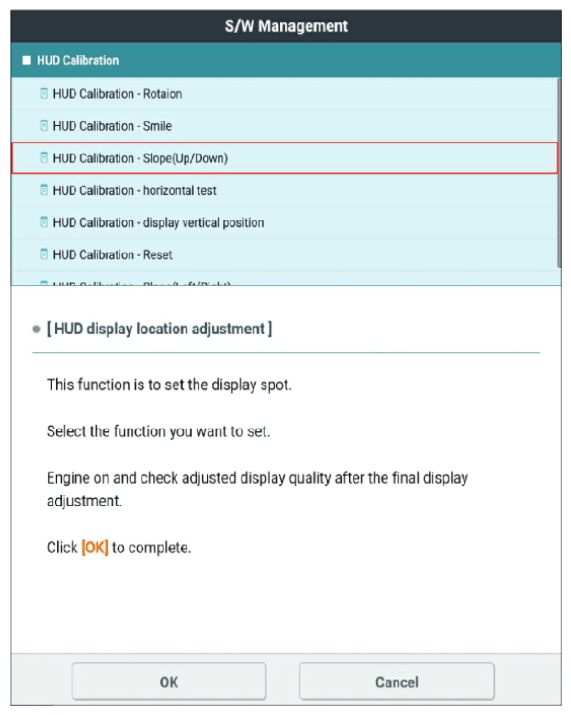

G13135151

Courtesy of KIA MOTORS AMERICA, INC.

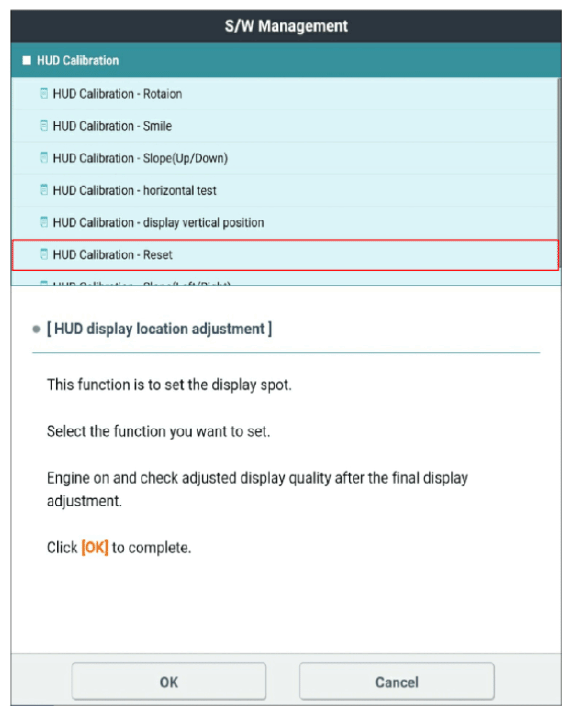

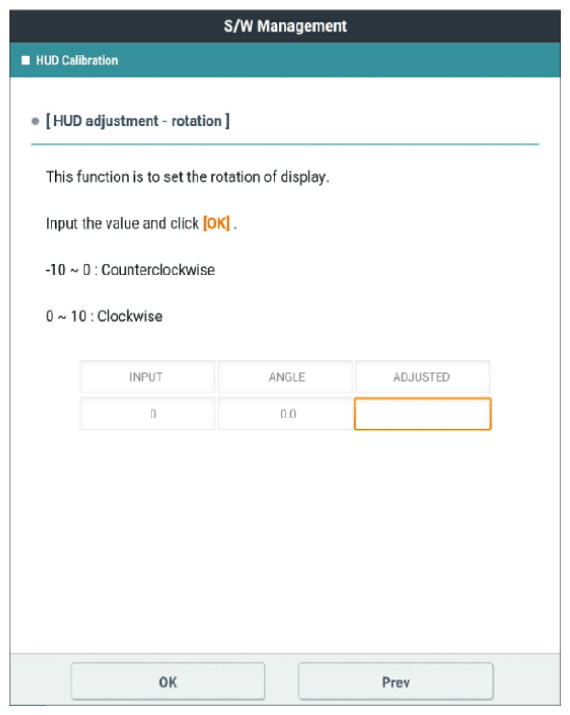

G13135152

Courtesy of KIA MOTORS AMERICA, INC.

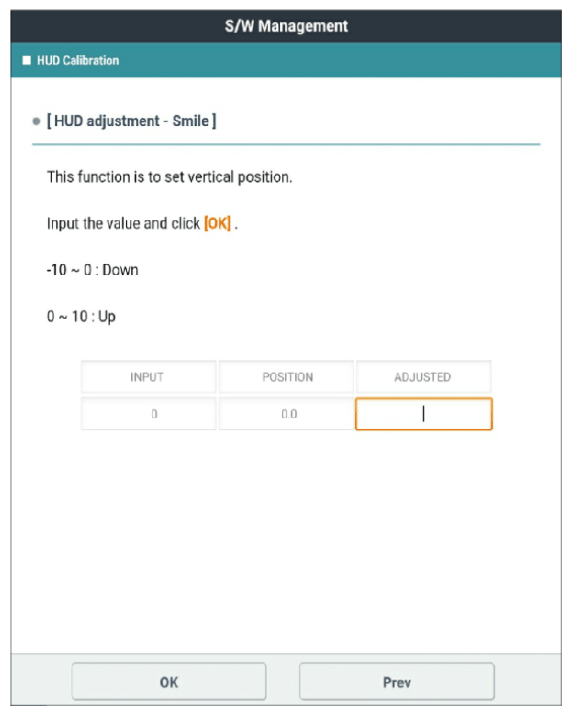

G13135153

Courtesy of KIA MOTORS AMERICA, INC.

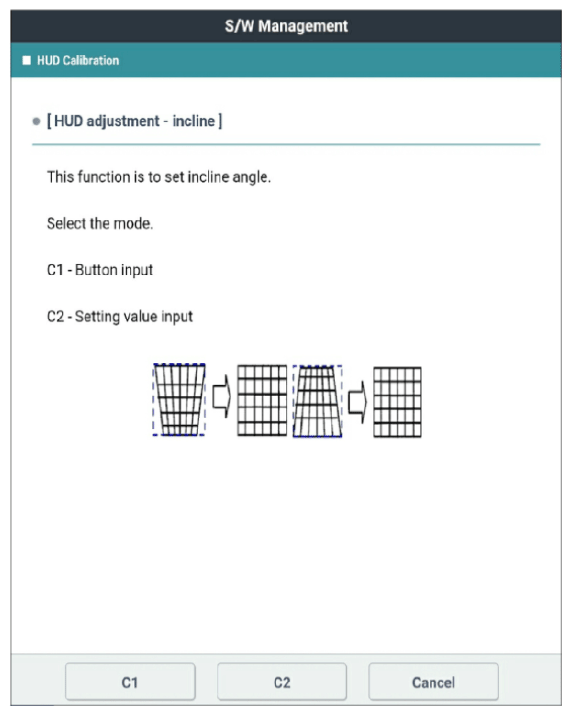

G13135154

Courtesy of KIA MOTORS AMERICA, INC.

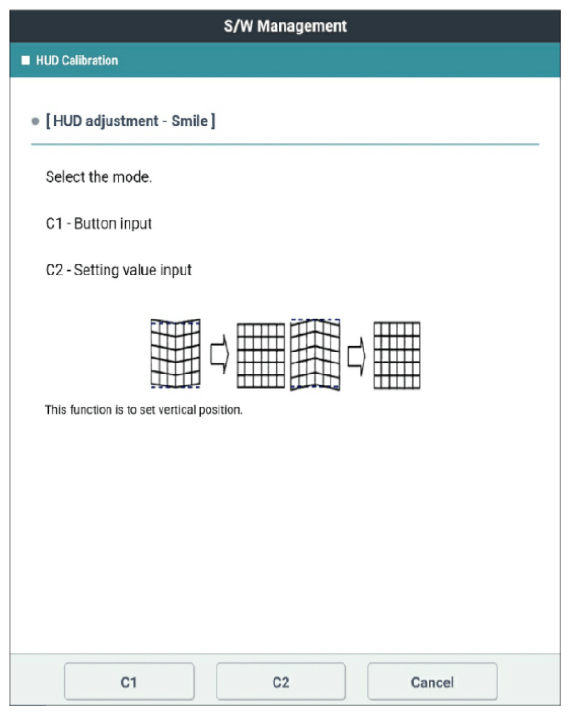

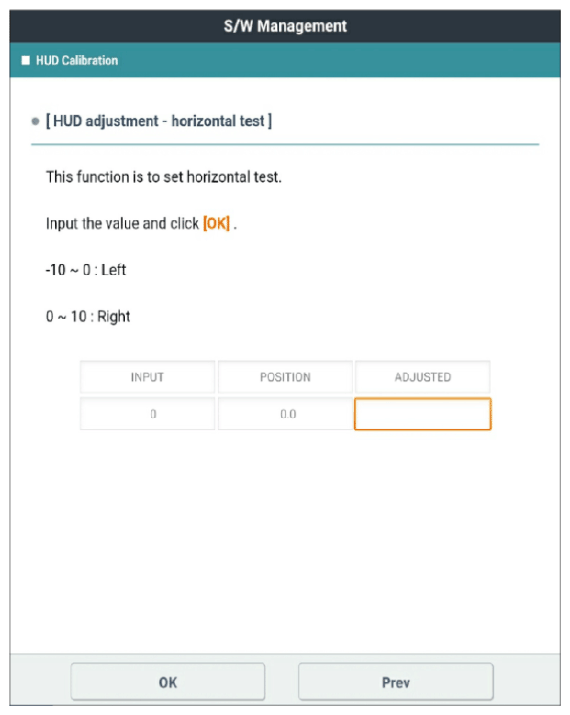

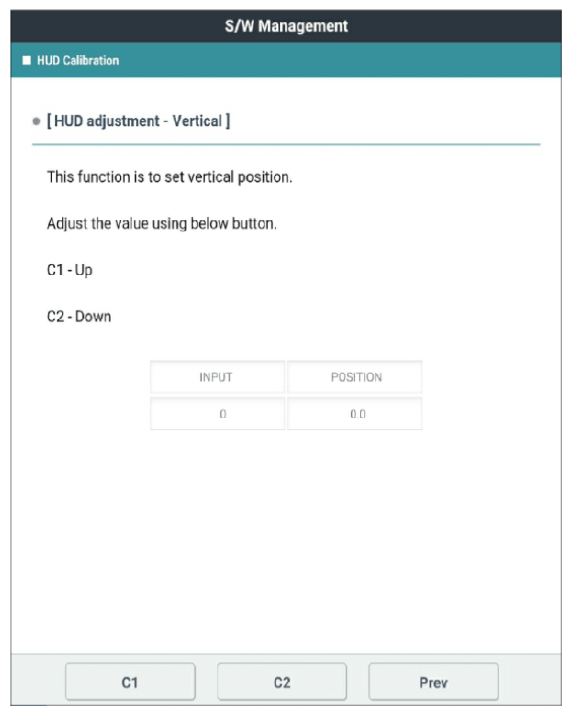

G13135155

Courtesy of KIA MOTORS AMERICA, INC.

G13135156

Courtesy of KIA MOTORS AMERICA, INC.

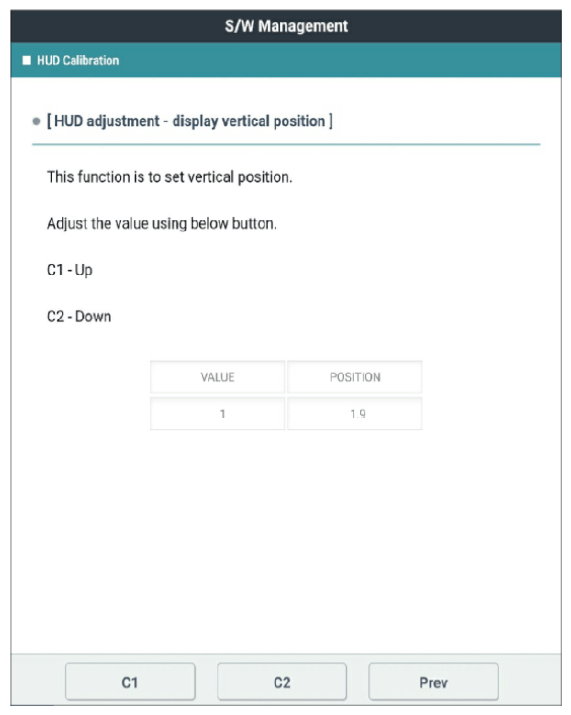

G13135157

Courtesy of KIA MOTORS AMERICA, INC.

G13135158

Courtesy of KIA MOTORS AMERICA, INC.

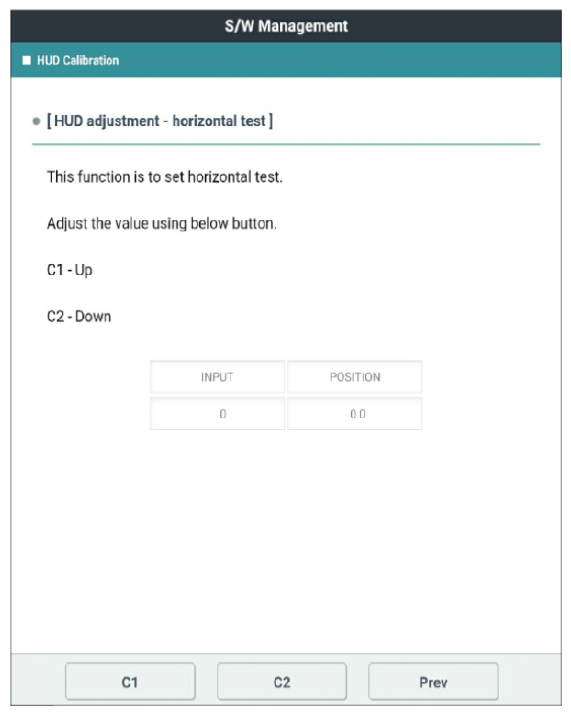

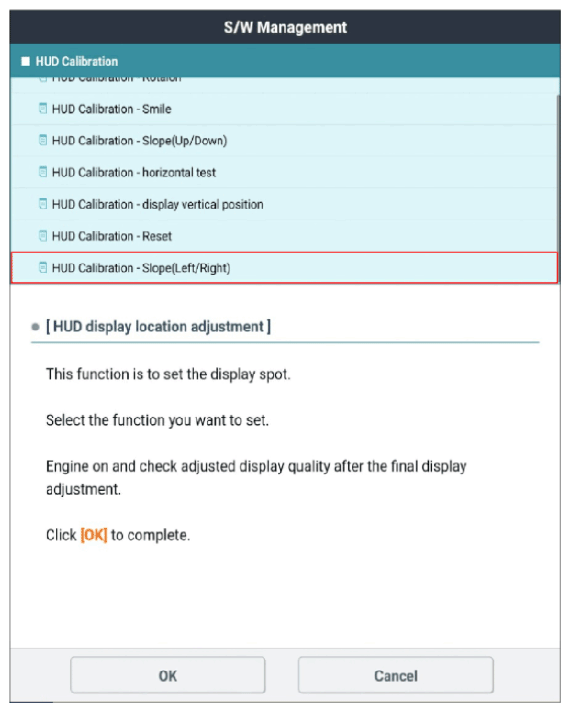

G13135159

Courtesy of KIA MOTORS AMERICA, INC.

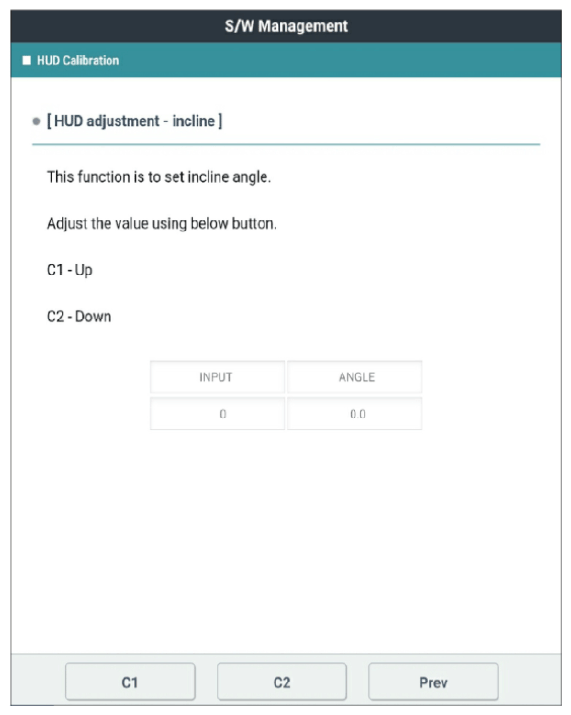

G13135160

Courtesy of KIA MOTORS AMERICA, INC.

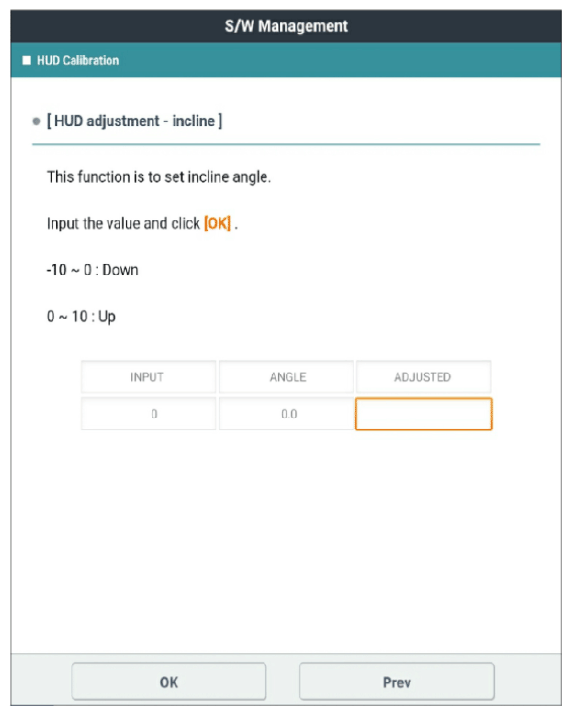

G13135161

Courtesy of KIA MOTORS AMERICA, INC.

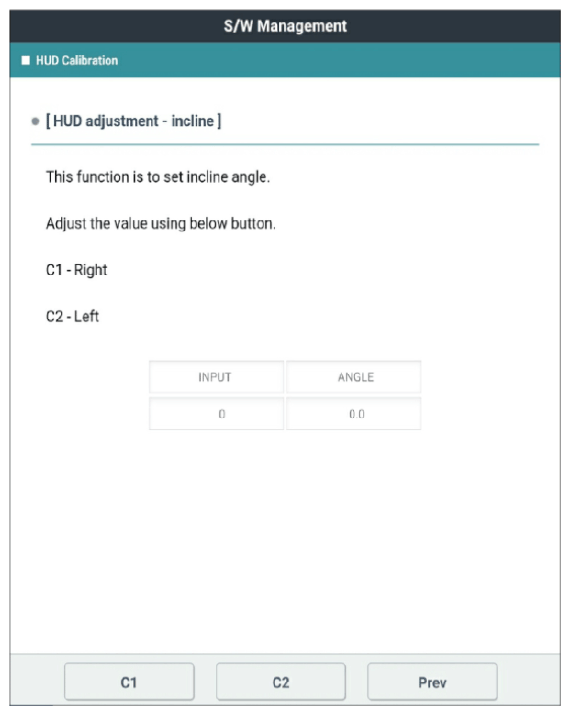

G13135162

Courtesy of KIA MOTORS AMERICA, INC.

G13135163

Courtesy of KIA MOTORS AMERICA, INC.

G13135164

Courtesy of KIA MOTORS AMERICA, INC.

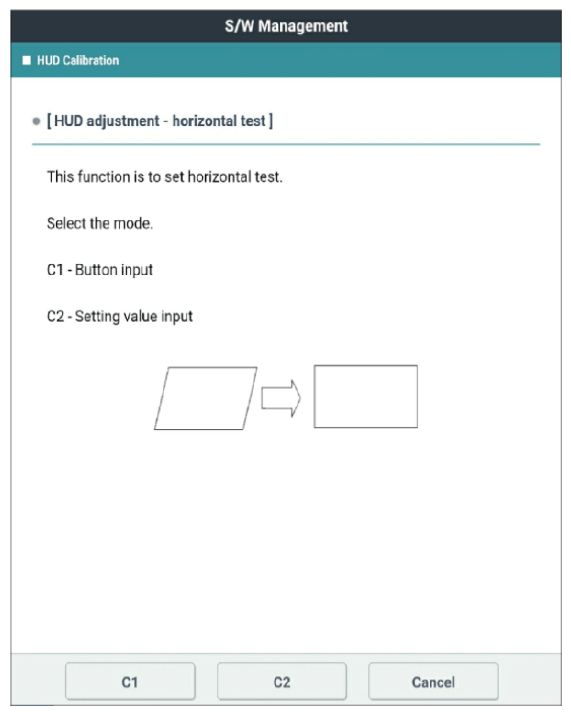

G13135165

Courtesy of KIA MOTORS AMERICA, INC.

G13135166

Courtesy of KIA MOTORS AMERICA, INC.

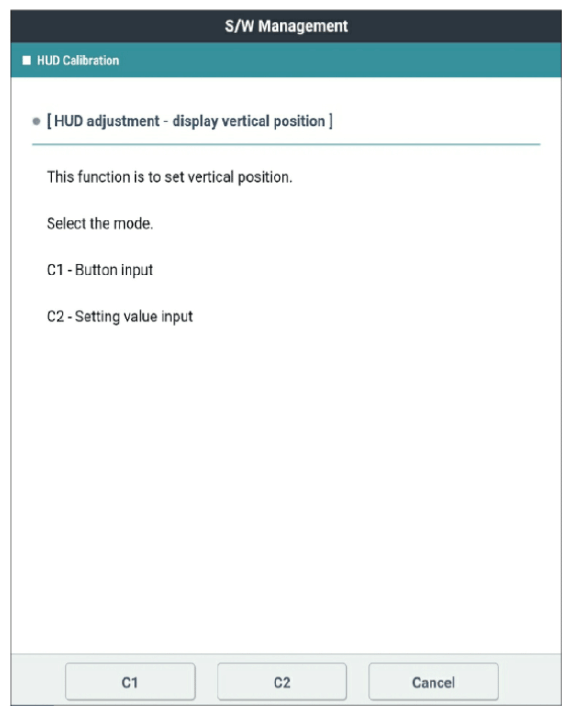

G13135167

Courtesy of KIA MOTORS AMERICA, INC.

G13135168

Courtesy of KIA MOTORS AMERICA, INC.

G13135169

Courtesy of KIA MOTORS AMERICA, INC.

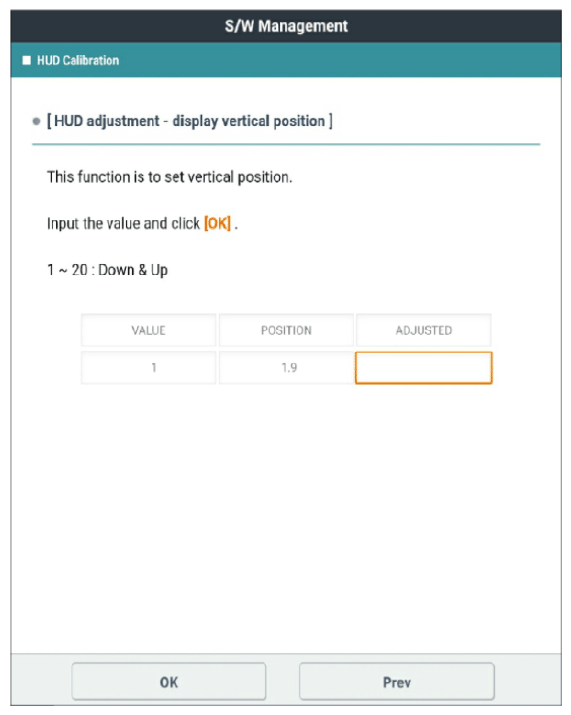

G13135170

Courtesy of KIA MOTORS AMERICA, INC.

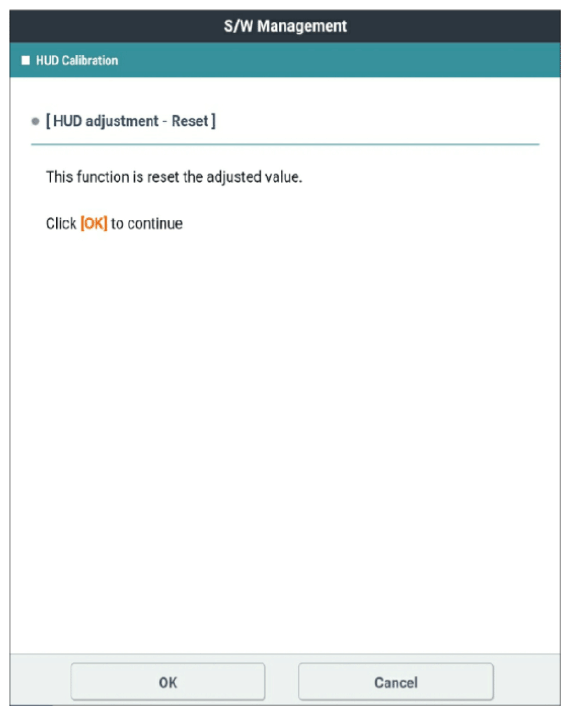

G13135171

Courtesy of KIA MOTORS AMERICA, INC.

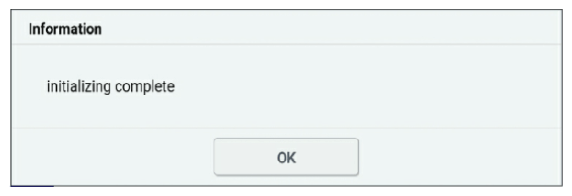

G13135172

Courtesy of KIA MOTORS AMERICA, INC.

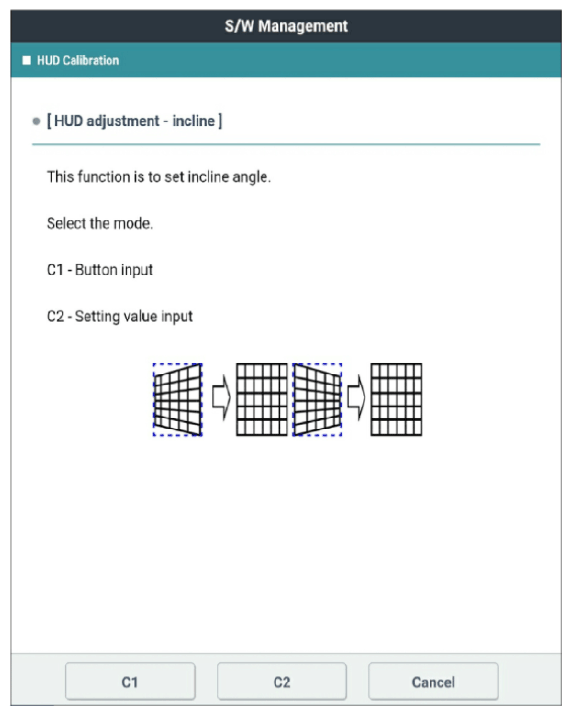

G13135173

Courtesy of KIA MOTORS AMERICA, INC.

G13135174

Courtesy of KIA MOTORS AMERICA, INC.

G13135175

Courtesy of KIA MOTORS AMERICA, INC.

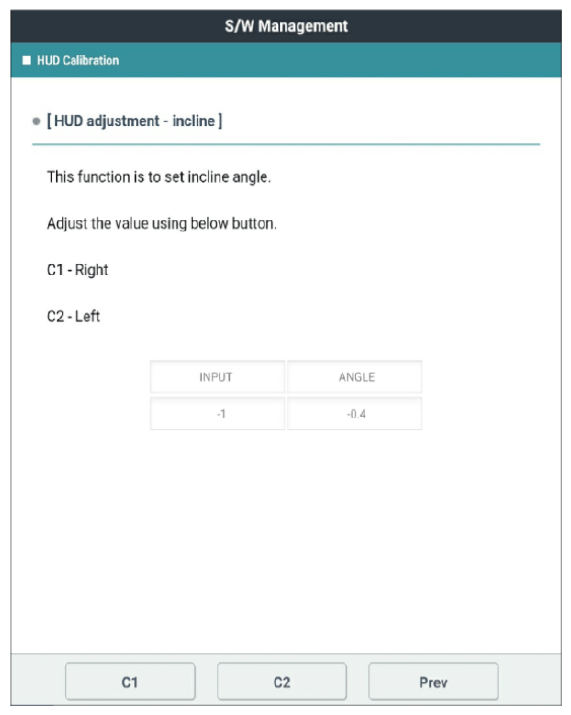

G13135176

Courtesy of KIA MOTORS AMERICA, INC.

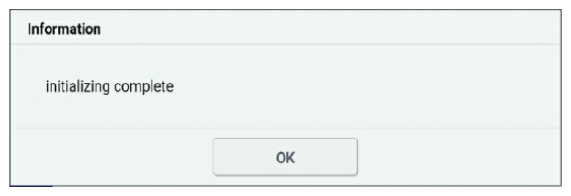

G13135177

Courtesy of KIA MOTORS AMERICA, INC.

Good

If the DTC erase, substitute with a known-good unit and check for proper operation. If the problem is corrected, replace the unit and go to "VERIFICATION OF REPAIR " procedure.
Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
