Lower crash pad panel [RH]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the AVN head unit.

    (Refer to Body Electrical System - "AVN HEAD UNIT ")

  4. Remove the DVD player.

    (Refer to Appropriate Service Information.)

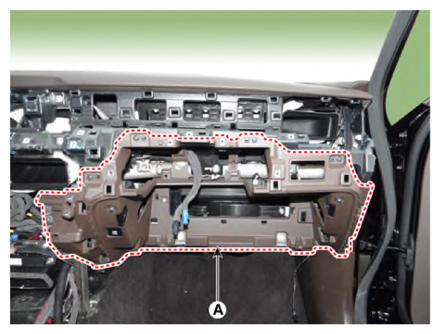

  5. After loosening the mounting bolt, nuts and screw, remove the lower crash pad panel [RH] (A).
    G13128085Courtesy of KIA MOTORS AMERICA, INC.

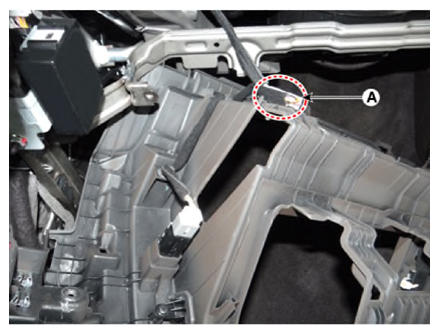

  6. Disconnect the connectors (A).
    G13128086Courtesy of KIA MOTORS AMERICA, INC.
  7. To install, reverse the removal procedure.
